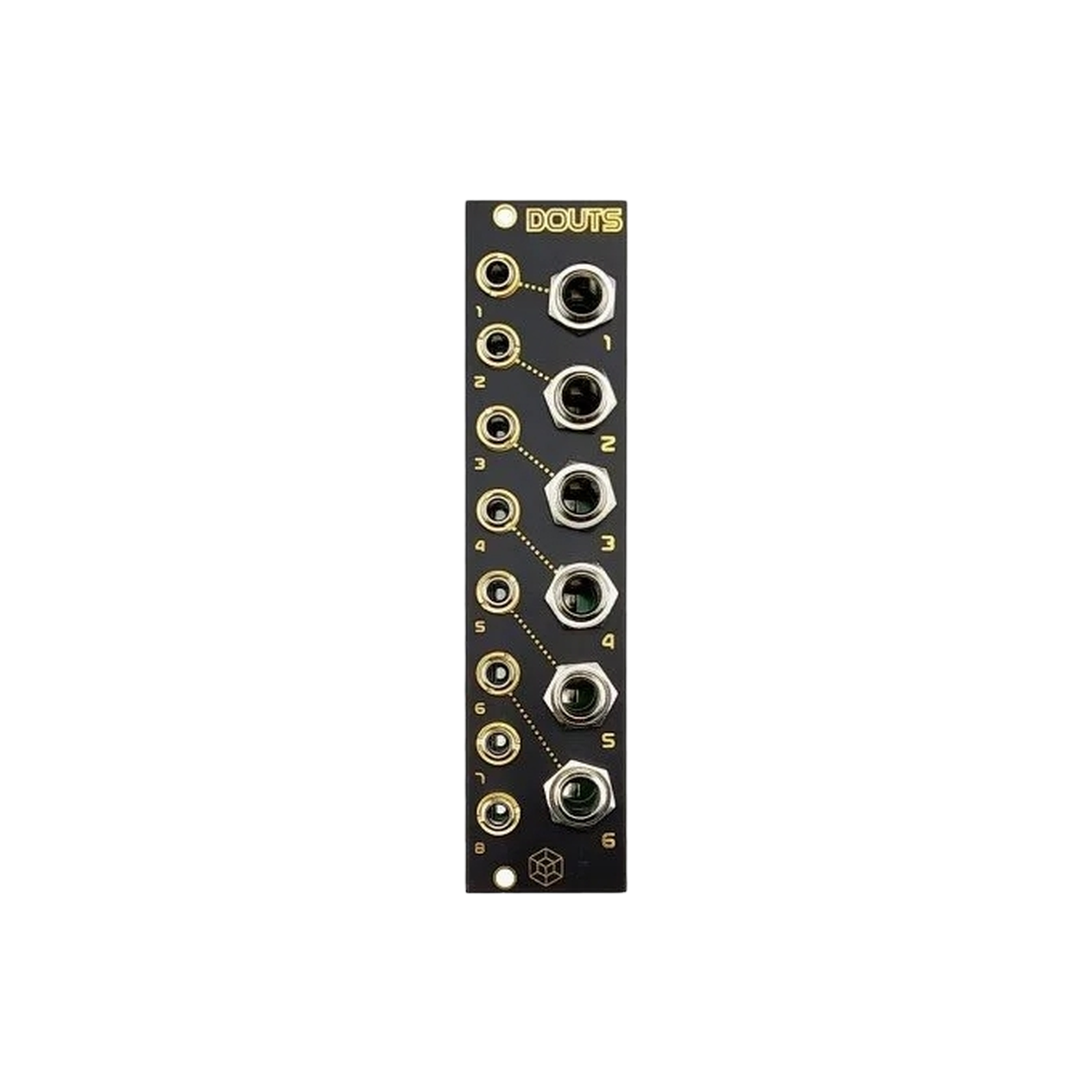

This is a breakout box for the direct outs of the TexMix. This is valid for the '4 Stereo Channels' and '4 Mono Channels' version 1.5 & 1.6, for earlier channel expander versions some DIY would be required (scroll down). Please note that if you bought your Stereo or Mono channels expansion in our shop - it’s already the latest version.
Each module has 8 outputs so it could have 2 '4 Mono Channels' connected or 1 '4 Stereo Channels'.
Without connecting the ribbon cable it's a 3,5/6,3 adapter.
the orientation of the 8 pin ribbon cable is marked by the 'DIRECT OUTS' legend on the PCB of the channel expanders (mono or stereo) and a white line in the DOUTS input header.
DOUTS has 3 headers on the back, 2 of them are for 4 Mono Channels, the other one, labeled STEREO, is for 4 Stereo Channels.
Size: 6hp
