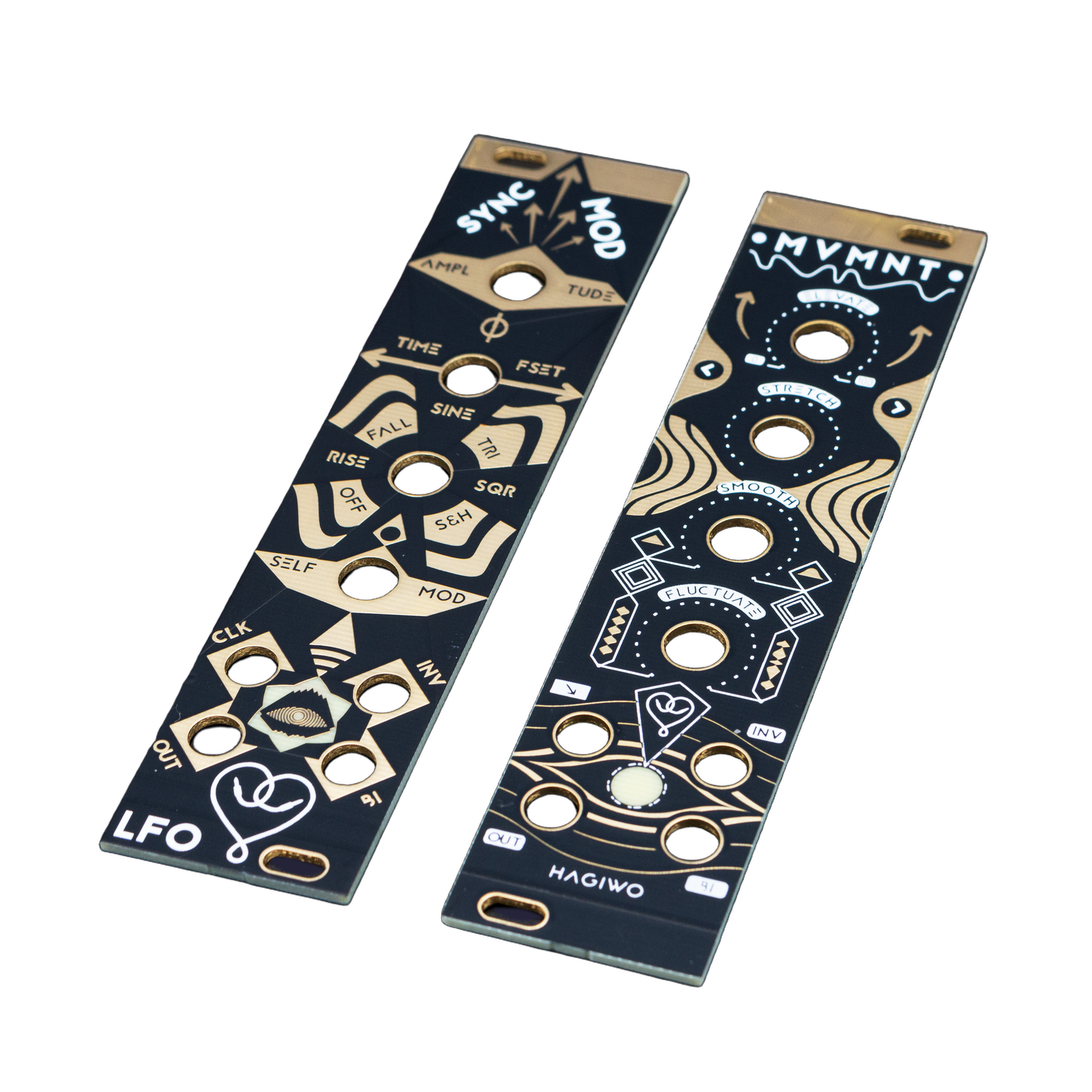

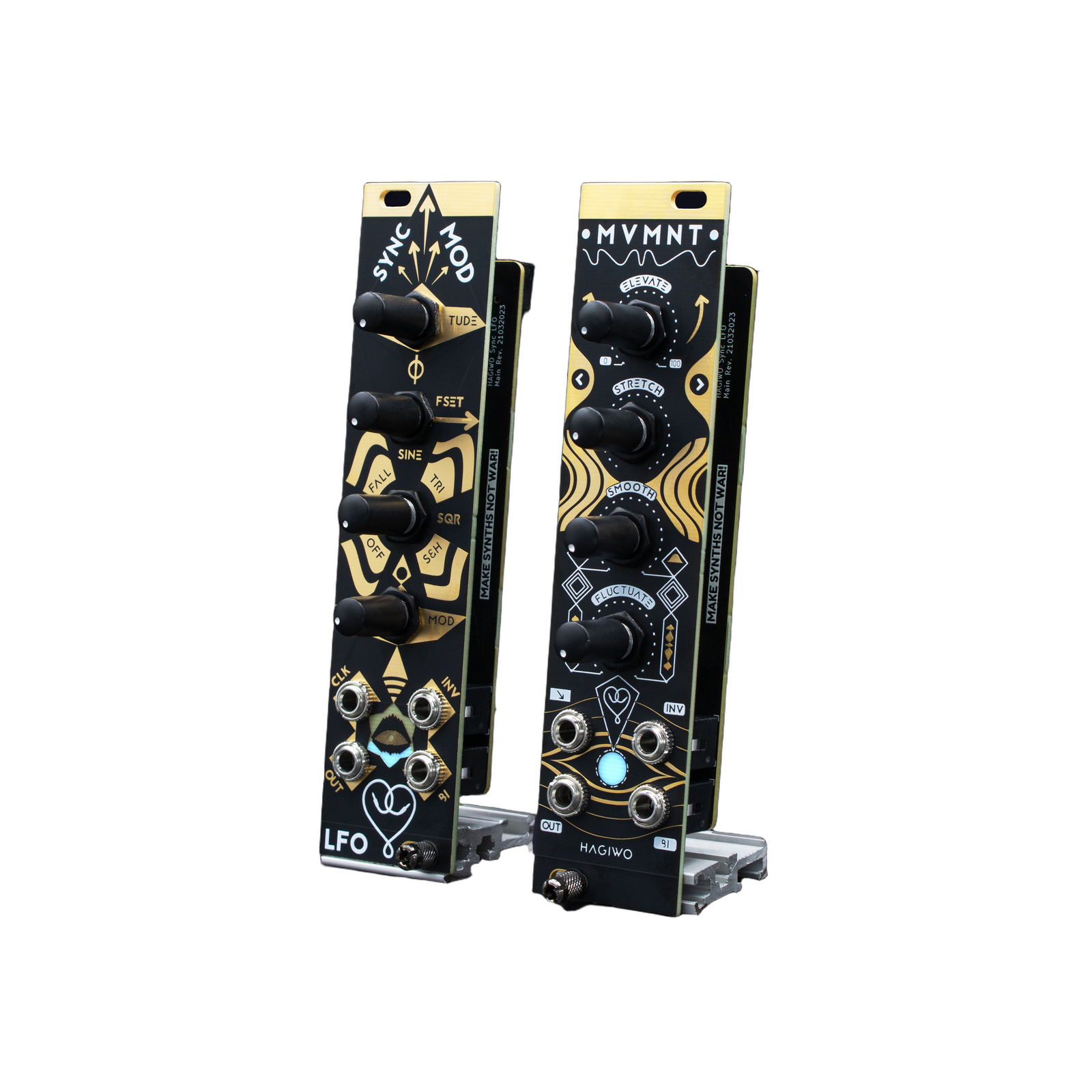

MVMNT by Modulove ( DIY ) - Bezier Curve Smooth Random Control Voltage
Full DIY kit!
The module is an Arduino-based Bezier curve smooth random CV generator with track and Hold via the trigger input and provides smooth random complex waveforms.
It can be easily modified / reprogrammed using the Download website and a USB cable.
It offers the following hardware features:
– Pre-soldered SMD Parts: Perfect DIY project for beginners.
– Panel Design by bkrsmdesign
– TRIG in: Track and Hold
– Eurorack power cable included
Changes from the original design:
PWM -> Analog conversion by active Steiner LPF (fg=500Hz) instead of passive RC network
Unipolar output changed from 0/+5V to 0/+10V
Additional bipolar output +/-10V
Additional inverted bipolar output +/-10V
DIY Info:
The assembly of the module is simple and suitable for beginners. The kit comes with SMD parts already soldered.
