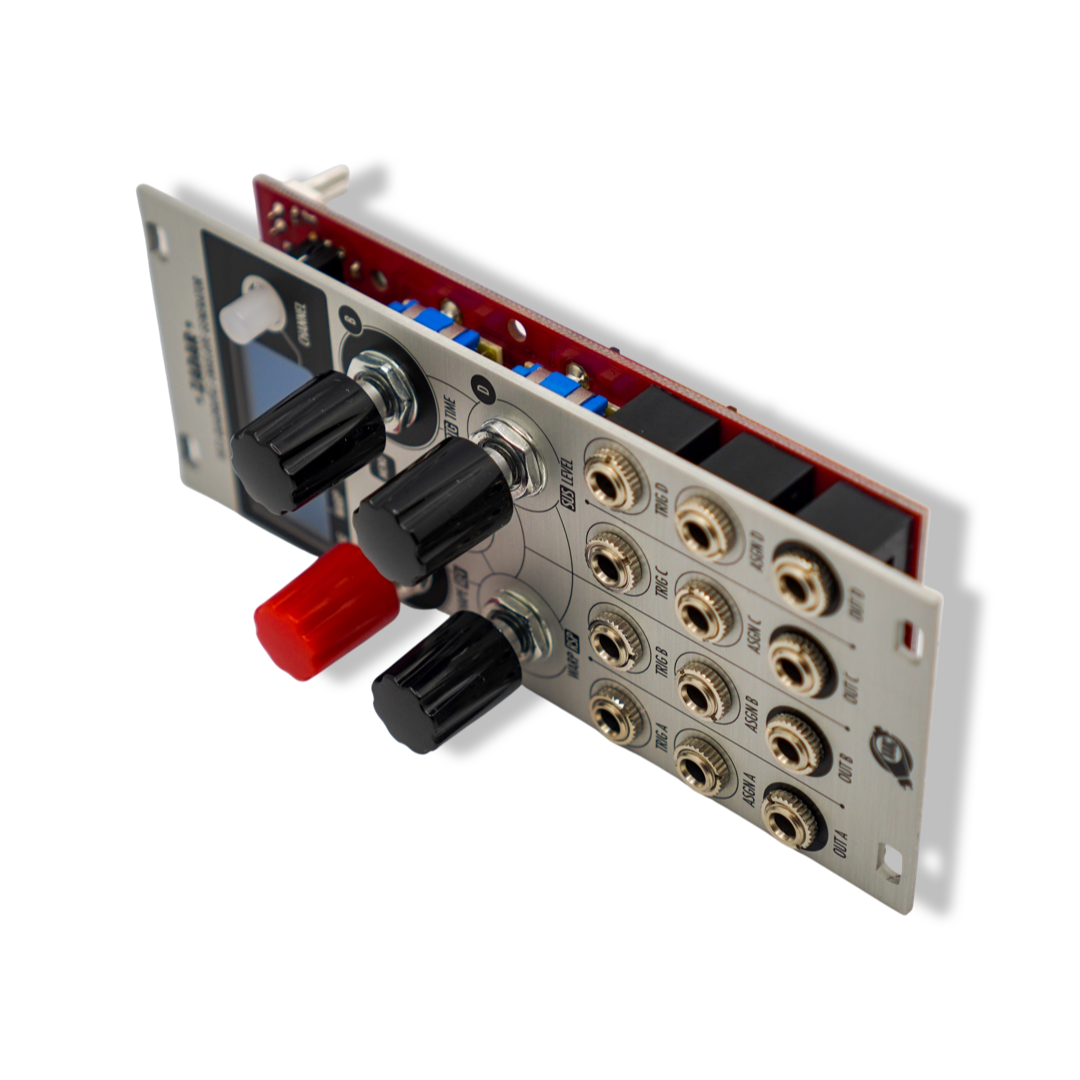

Zadar by Xaoc Devices - Quadruple Envelope Generator
The Zadar is a powerful, four-channel envelope, modulation, and transient generator. It offers a vast palette of envelope shapes, which can be manipulated in real time using a set of freely assignable CV inputs. Each channel can work independently or be combined with other channels using one of the chaining and looping algorithms.
Operating the Zadar is easy and intuitive, thanks to its accessible interface and crisp OLED display. The main screen shows all the parameters and the currently selected shape. The simple 3-page menu is only needed for advanced settings.
Whether you're looking to add more envelope options to your modular setup or want a compact yet powerful generator, the Zadar is a great choice. For detailed description, please refer to the manual.
FEATURES
four independent channels
260 unique vector shapes
cycle time range: 0,85ms to 30min
shapes can be radically modified in two dimensions
immediate operation, accessible interface
complex envelope looping and chaining features
assignable CV inputs to control nearly every parameter
18 preset slots
TECHNICAL DETAILS
10 hp wide
skiff friendly
current draw: +40mA/-10mA
secured against reversed power connection
