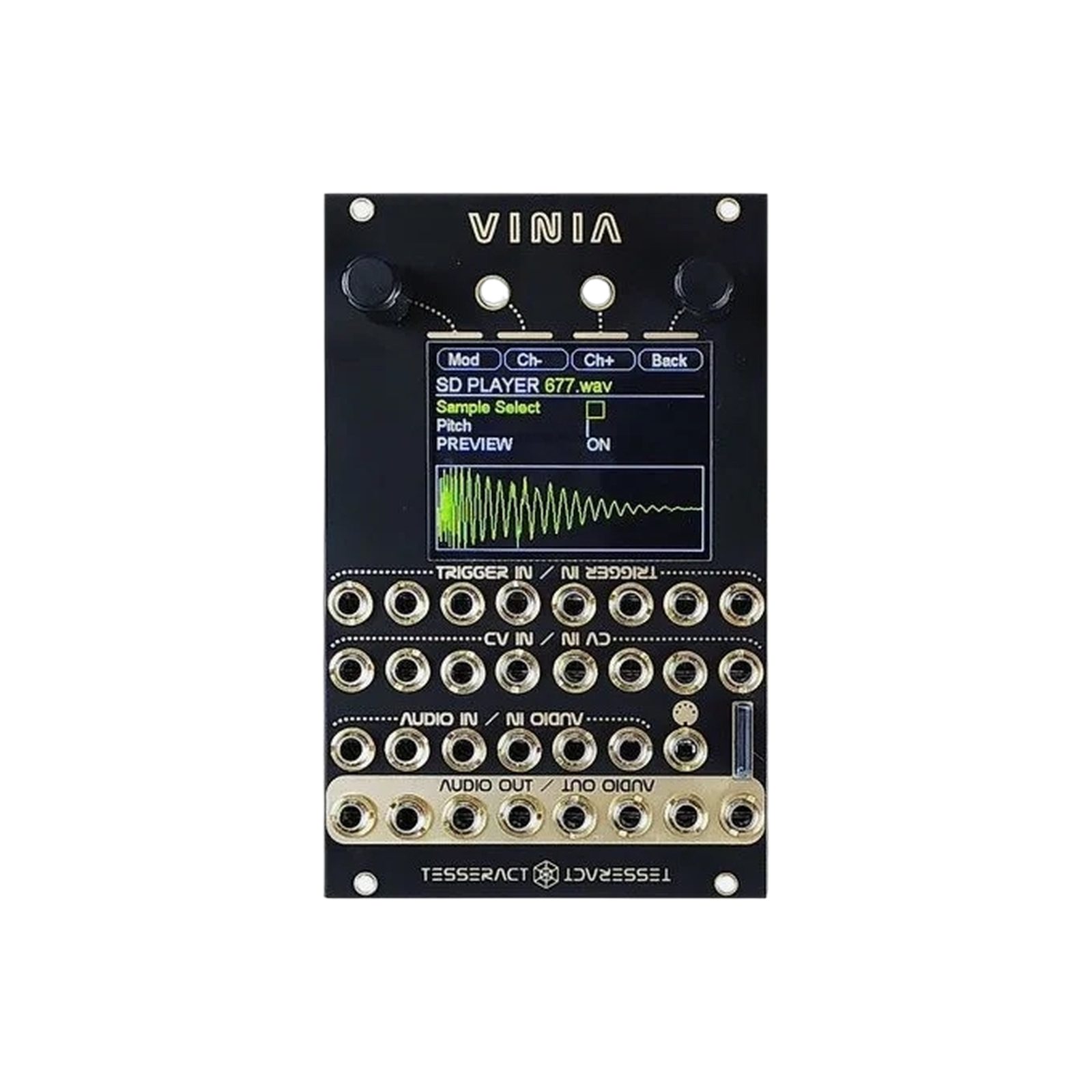

Vinia by Tesseract Modular - Audio generator and effects processor
Vinia is a new powerful 8-channel audio generator and processor for Eurorack. Each channel is independent and has its own signal chain. This can be a multi-engine instrument, an FX processor, a combination of both, or a chain of several FX.
The sound generator section offers 2 sample players (one plays from the 16 MB internal flash memory and the other directly from the microSD card), various VCOs (VCO, multi-VCO, harmonic VCO), Karplus, a Chord generator, noise, a drum synth and modulation generators (LFO, envelope follower, envelope).
Each of these generators has a rich set of parameters for setting up your sounds. Then, there is a powerful multi-FX processor.
Tesseract Modular has added 20 different algorithms in Vinia: FM operator, filters (multimode, ladder, rubber, bandpass), a wave folder, tube saturation, delays (filter delay, delay, long delay), reverb, metallizer, grain pitch shift, and more.
These can be flexibly set in a chain per channel and offer many customization possibilities. The module also hosts a mixer. You can also save your channels in presets and work with macro parameters.
Each of the 8 channels can be independently configured as a multi-effect processor, VCO, sample player…
8 Channels
6 Audio inputs (AC coupled, tracks 7 & 8 use inputs 1 & 2)
8 Audio outputs (DC coupled)
8 trigger inputs
8 CV inputs (-5V / +5V)
Midi TRS input
2,4” color display
LFO, envelope, envelope follower, and mini sequencer per channel
The module can be used both with jacks up or down.
Audio outputs are DC coupled so it can be used to generate complex CV modulation sources too.
There are 2 types of modulation in Vinia, the first is stepped (occurs every 1,4 milliseconds approx.) and very flexible, any modulation source can modify any parameter of any track. The second is the ‘audio rate’ one (44,1 KHz), only a few parameters admit this type and both sources and destinations will be within the same track.
Audio sources:
Audio Input
Flash Sample Player
MicroSD Sample Player
VCO
Multi VCO
Harmonic Oscillator
Karplus
Chords
LFO
Envelope Follower
Envelope
Noise
Drum Synth
Audio processors:
FM Operator
Multimode Filter
Ladder Filter
Rubber Filter
Bandpass Filter
VCA / Polarizer
Folder
Tube Saturation
Exponential Envelope
Delay
Filter Delay
Long Delay
Long Filter Delay
Reverb
Metalizer
Chorus
Modulator
Vocoder 16
Vocoder 32
Bit Crusher
Rectifier
Grain Pitch Shift
Ring Modulator
Size: 16 HP
