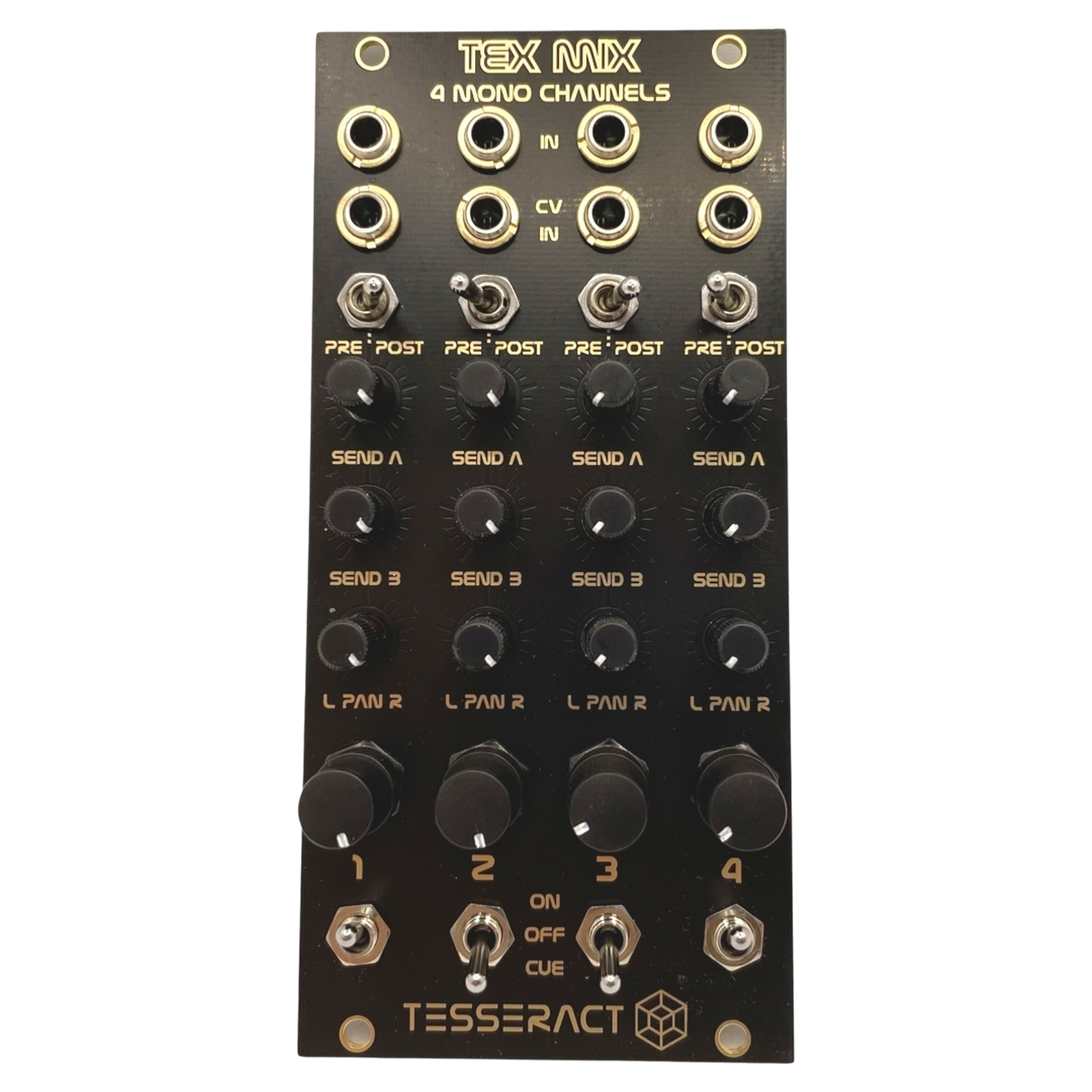

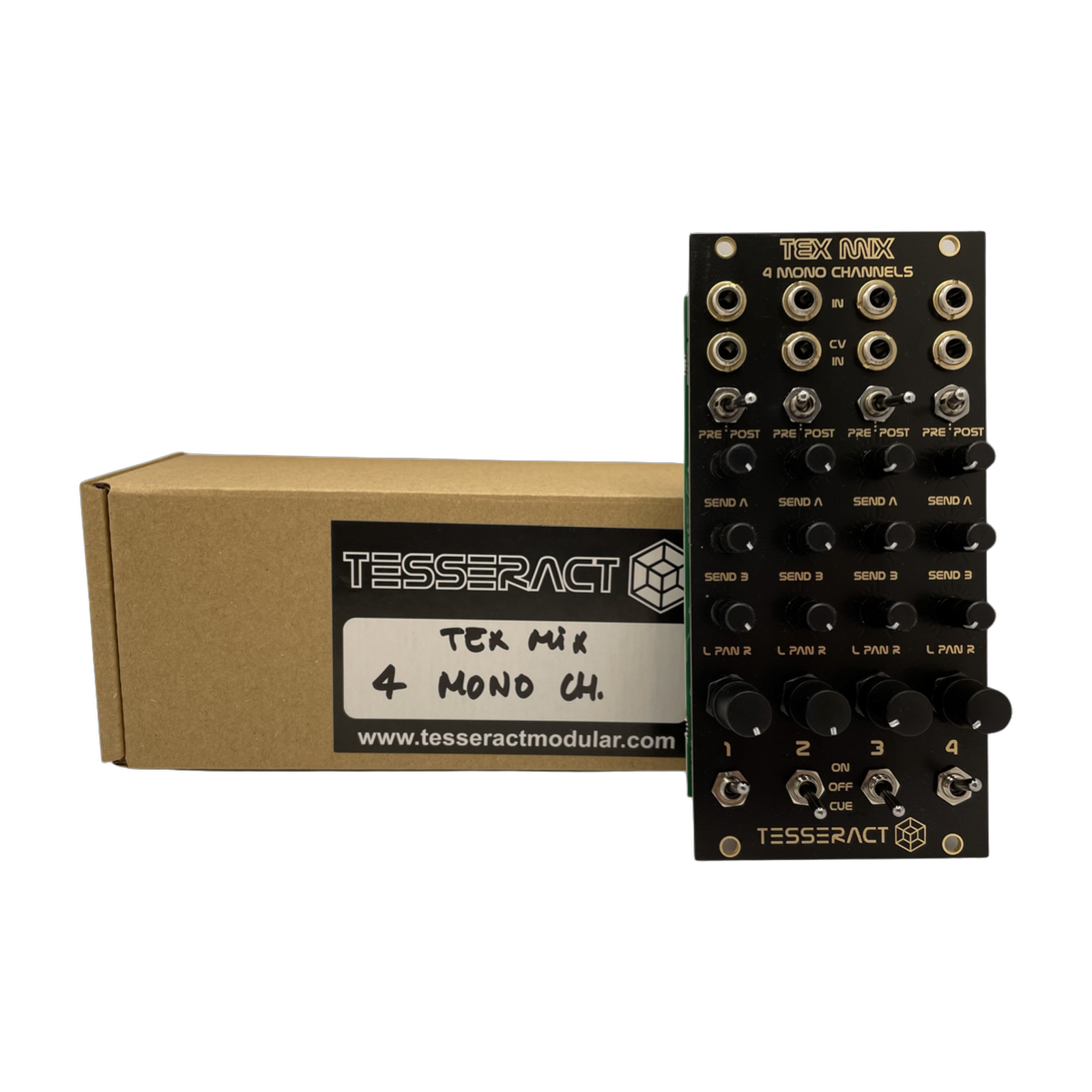

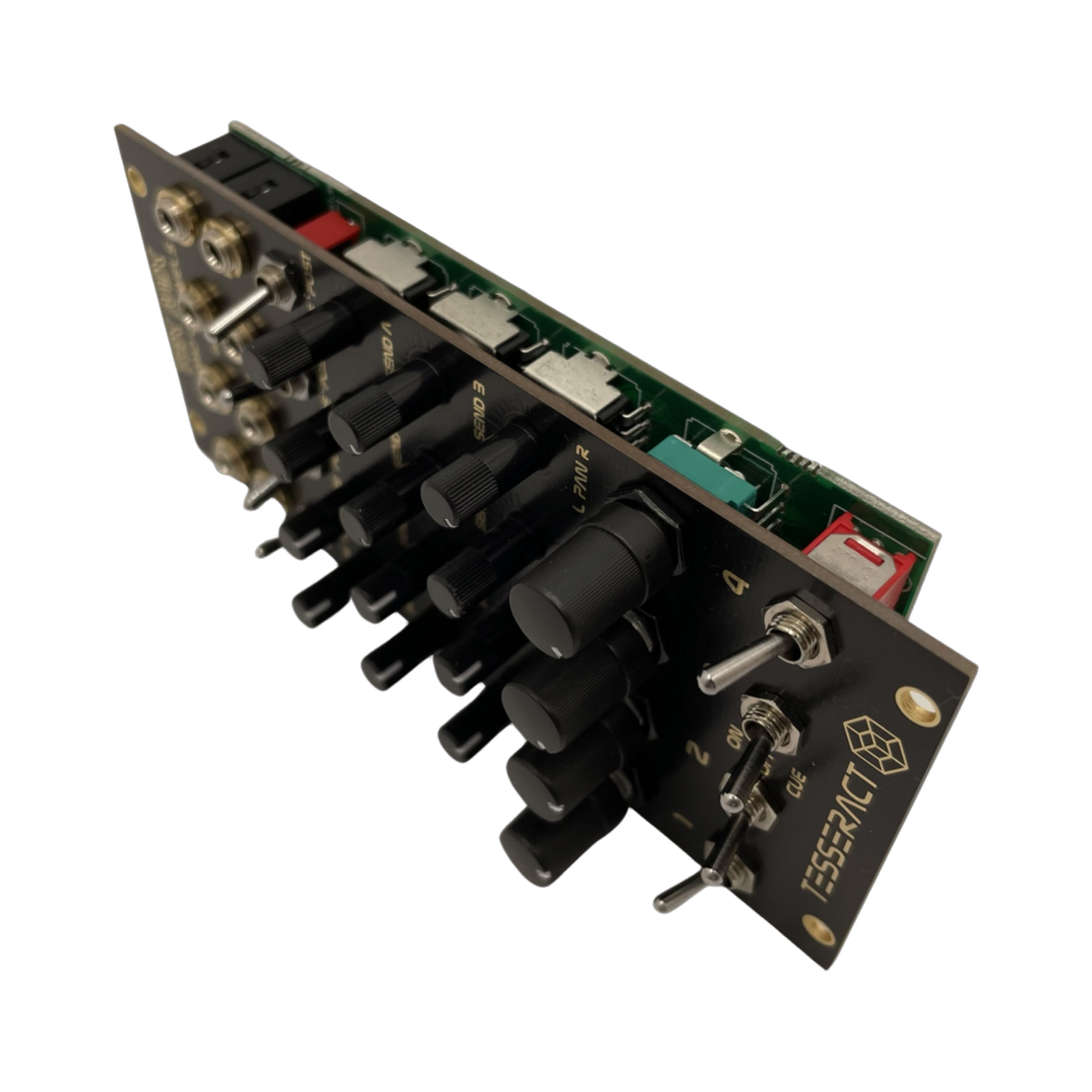

TexMix 4 Mono Channels by Tesseract - Mono mixer expansion for the TexMix
This is a 4 mono channels expansion. Several of these modules can be added to provide more channels. Every channel features:
- Mono input
-Linear VCA (only versions 1.5 & 1.6, previous version has a Vactrol Gate)
-SEND A control (switchable PRE/POST, in PRE mode the signal is present regardless to the channel volume control but only if the channel switch is in ON position)
-SEND B control (post-fader)
-PAN control (only affects the master bus)
-VOLUME control (affects the master, cue and POST sends, does not affect PRE-fader send)
-ON/OFF/CUE switch:
ON - channel is routed to the master bus
OFF - channel is muted
CUE - channel is routed to the cue bus

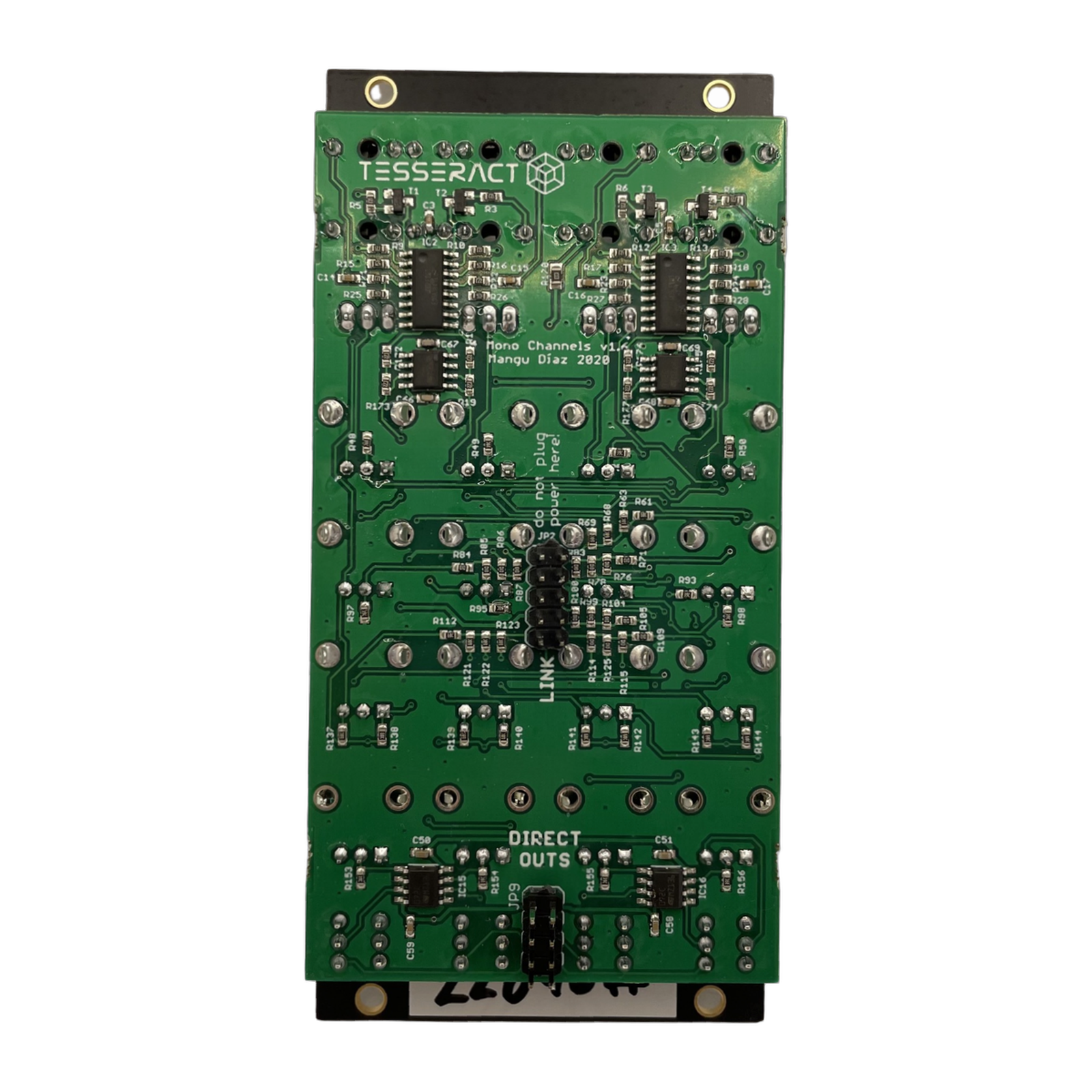

-Header for direct outs (only versions 1.5 & 1.6)
Size: 12hp
Manual: https://docs.google.com/document/d/1vae1EN4fMGtUhlCPmYTmMSbE-9Ip4i1NLRefINSQALA/edit?usp=sharing
