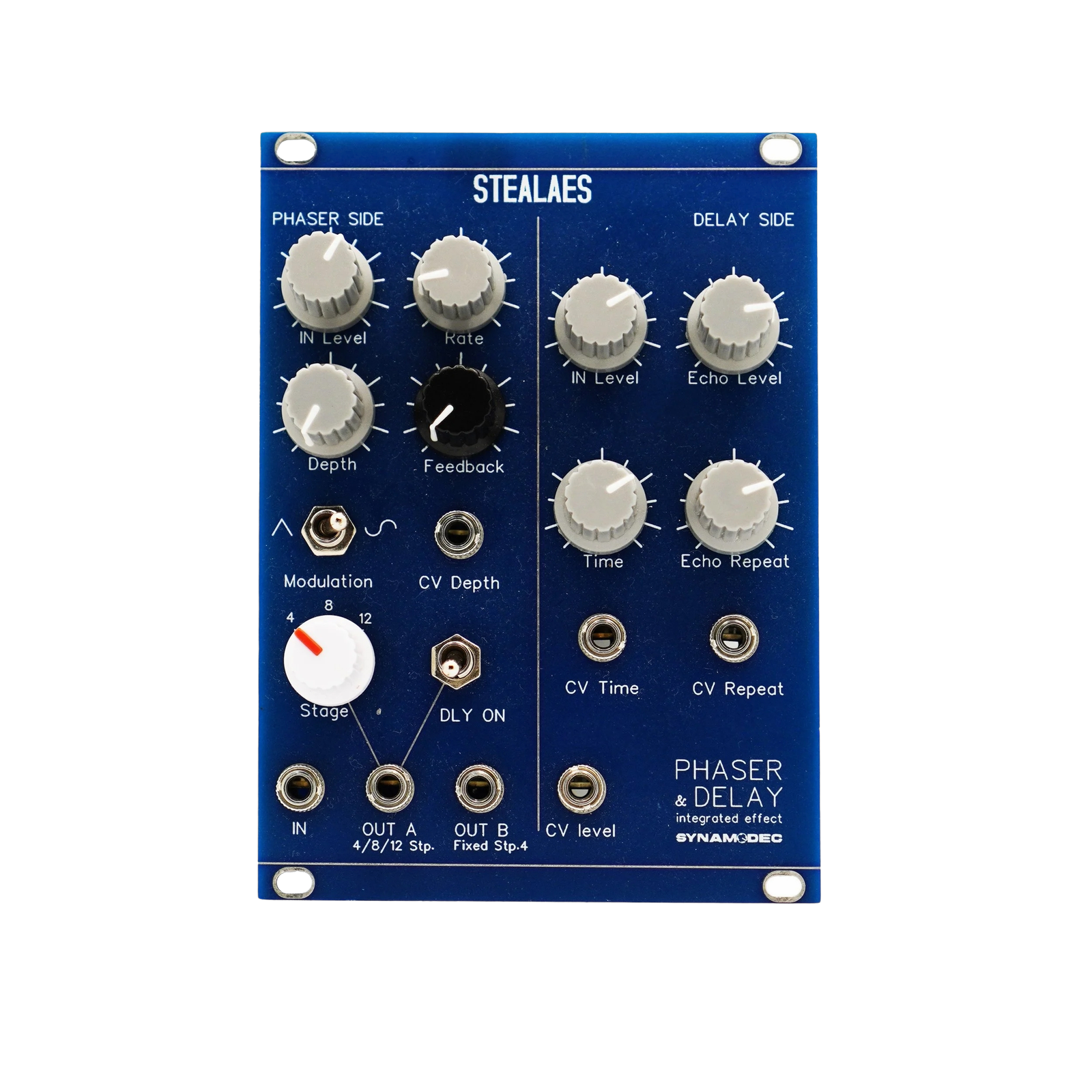

Stealaes by Synamodec - Analog Phaser and Delay
Phaser and delay in one module
Onboard LFO
Broad CV control
Two outputs, so can be connected to stereo equipment
Two modules in one project: a phase shifter of 4, 8 and 12 steps and an echo processor.
The phase shifter has input level control, rate, depth and feedback controls, two modulation modes (triangular and ramp) step selector, CV for depth,
Using a switch, the phase shifter can be used without the echo module.
The echo processor has input level, echo level controls, echo repetition and delay. All these controls have their own CV.
The module has two outputs. Output A, with the steps that we choose in the phase shifter, and output B, with 4 random steps output.
The outputs are simultaneous so it can be connected to stereo equipment creating a very complex and full envelope.
