Noise2 by Wildsync - Noise and S&H

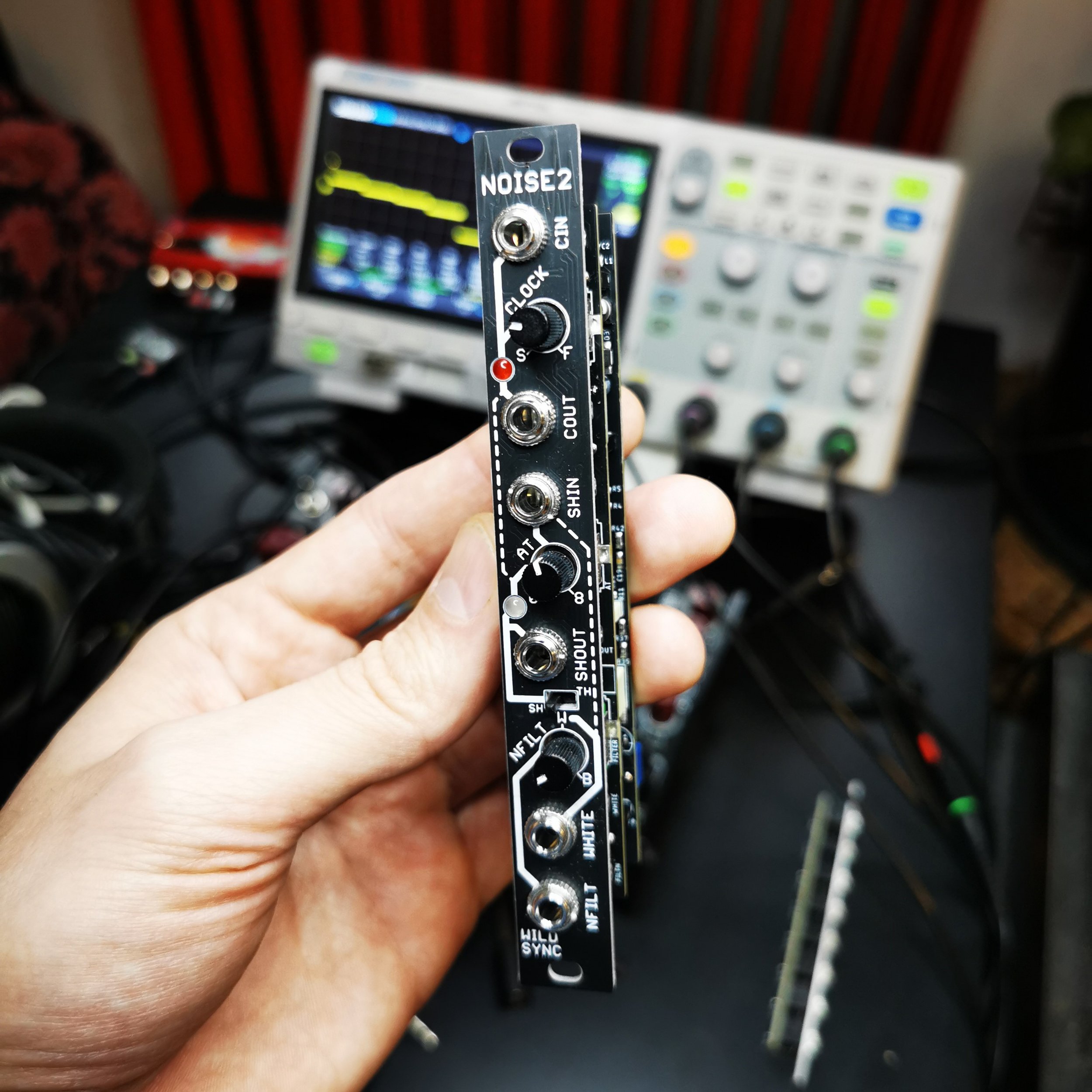

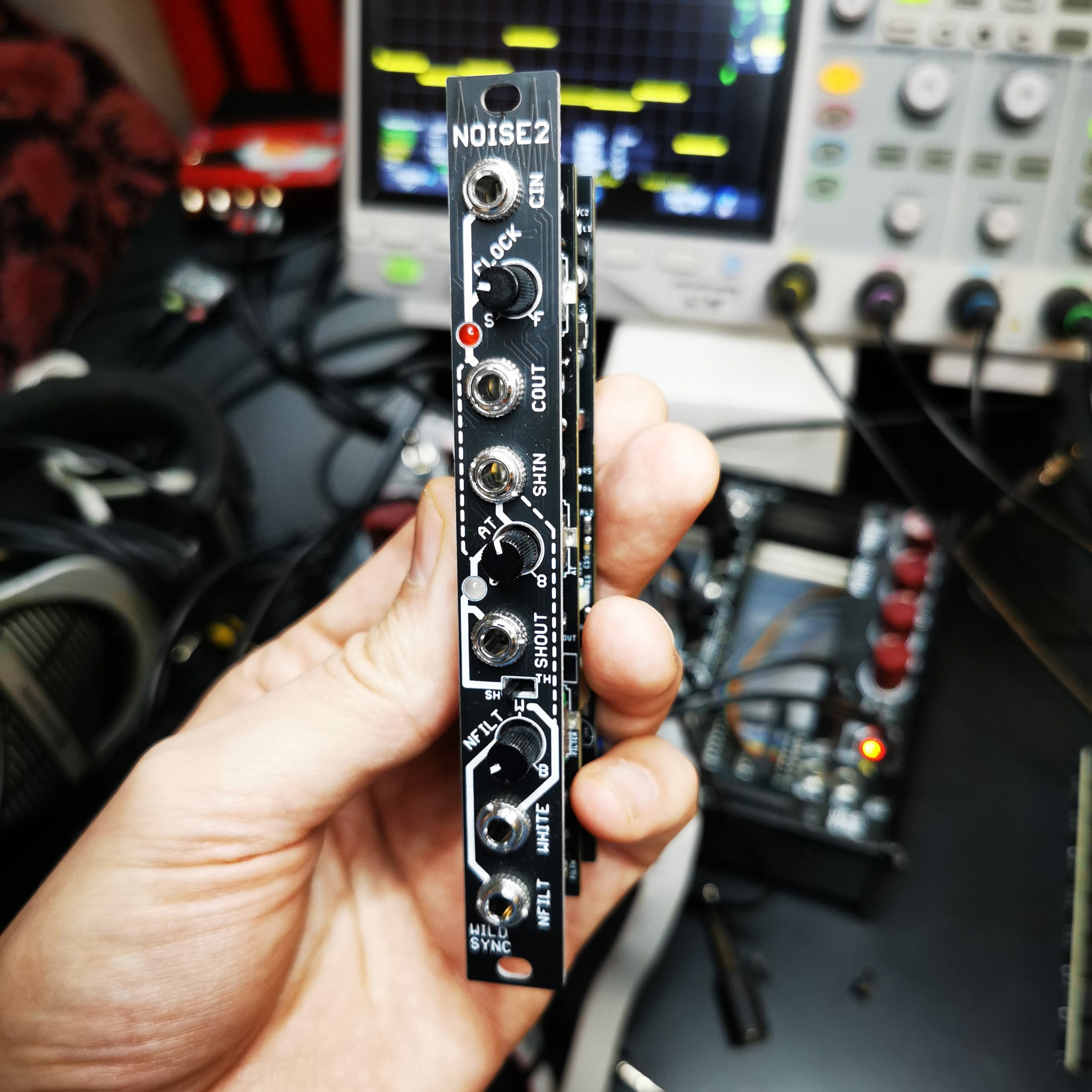

Noise2 is a compact yet powerful Eurorack module that combines a noise generator, a sample & hold circuit, and a clock generator, all within a 3HP format.

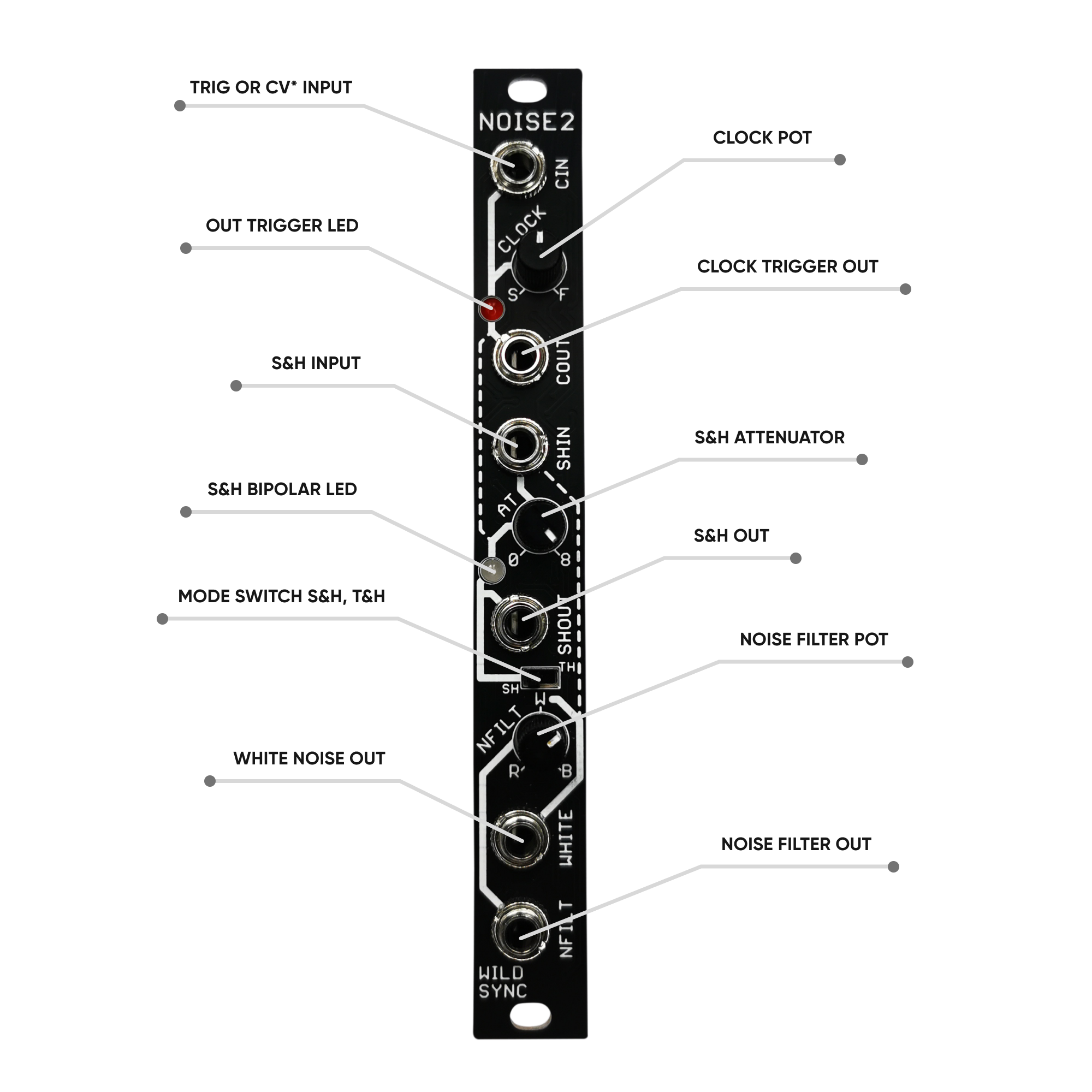

Noise Generator: Features a filter control knob (NFILT) and two outputs for WHITE noise and filtered NFILT noise.
Sample & Hold: Includes an input (SHIN) with 3x gain, internally routed to noise by default (selectable between white noise and filtered noise via jumper), an input attenuator (AT), a mode switch (Sample & Hold / Track & Hold), an output indicator, and an output jack (SHOUT).
Clock Generator: Features an input (CIN) that can accept TRIG or CV 0..8V signals (selected via an onboard switch), a time control knob (CLOCK) with two timing ranges (40ms to 3s or 77us to 7ms, switchable via an onboard switch), an output trigger indicator, and a clock output (COUT).
Noise2 is an excellent tool for rhythmic sequencing, modulation, and adding organic randomness to your patches.
Dimensions: 3 HP, 35 mm deep
Current Draw: 29mA +12V, 11mA -12V
+ 15cm power cable included
Size: 3HP
