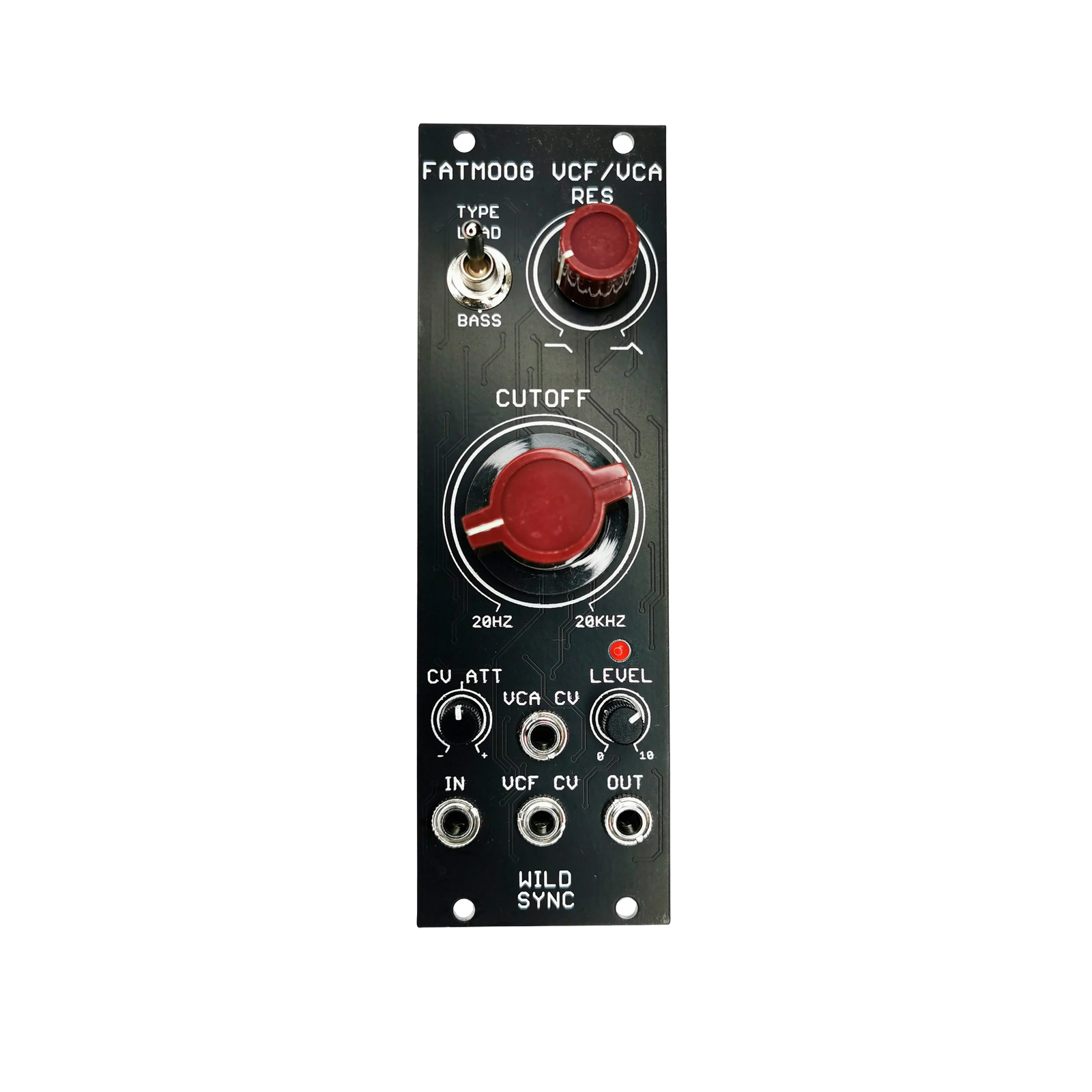

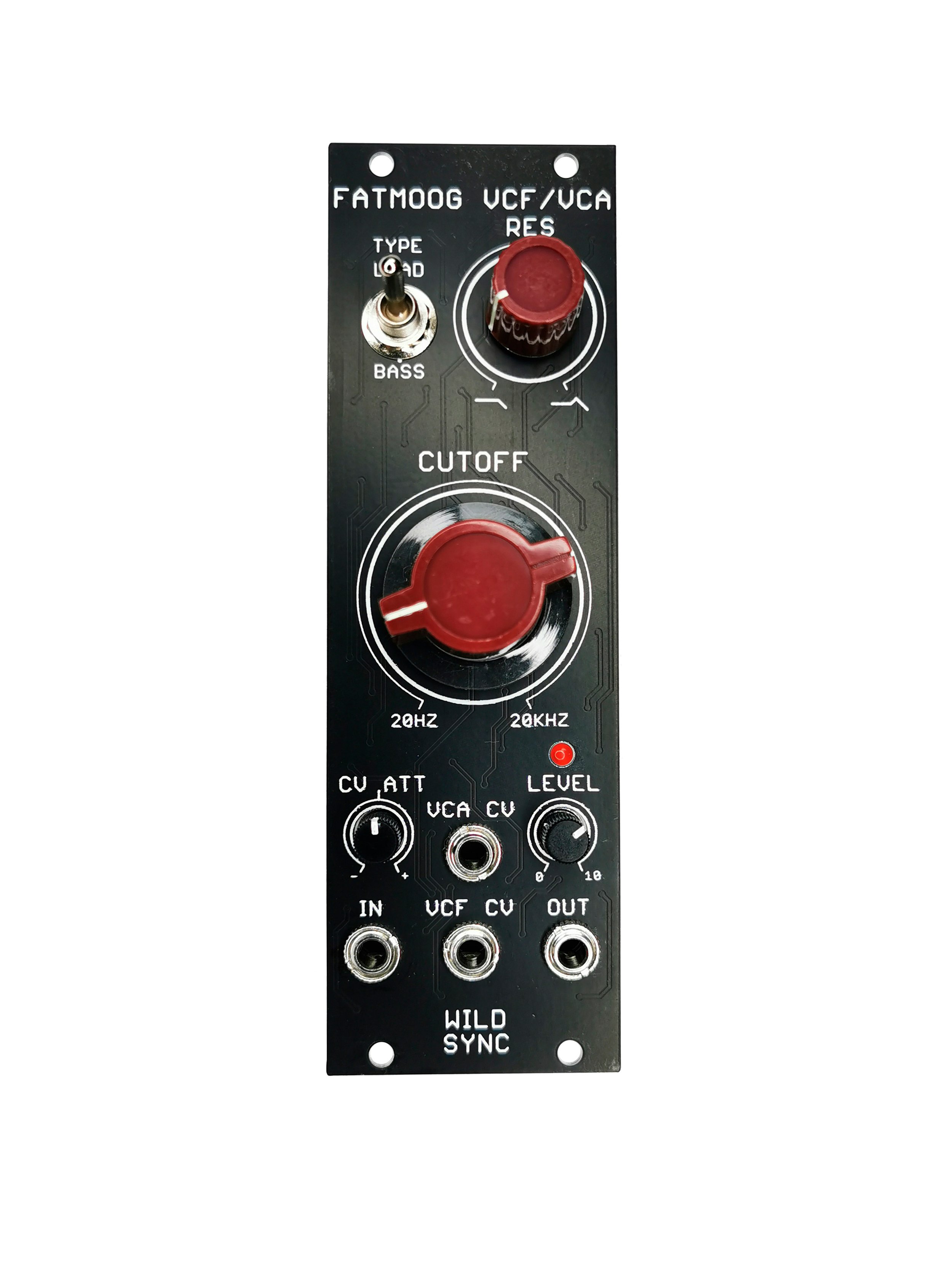

Fatmoog VCF/VCA by Wildsync - Moog ladder filter with integrated VCA
The Wildsync FATMOOG VCF/VCA module is a powerful addition to your Eurorack system, combining the legendary sound of the Moog ladder filter with an integrated VCA. This module can become the heart of your synthesizer, imparting a distinctive analog character typical of classic Moog synthesizers.
The module features a voltage-controlled 24 dB/octave ladder filter, enriching your sound with harmonics and providing the signature "fat" tone that Moog filters are known for. The addition of the VCA makes this module a compact and efficient output stage for your synthesis setup, allowing for dynamic control of your audio signals.
With this module, you can create a wide range of sounds: pair it with a VCO, mixer, and envelope generator to craft a complete bassline synthesizer, or crank up the resonance and add an envelope for punchy bass drums and toms.
Features:
- Voltage controlled 24 db/octave ladder filter
- Attenuverter on filter CV input
- Level attenuator on VCA CV input
- 2 waveshaper mods: Lead (prodigy) and Bass (minitaur)
- Output peak indicator with adjustable peak level setting
- VCA range from 0 to 8V
Depth: 30 mm
Current Draw:
32 mA +12V
27 mA -12V
Size: 8 HP
