Fade by Bear Modules - Manual CV modulator
The FADE gives a solution to control CV’s in your system from a central place. Next to that it answer the problem that very complex modules sometimes have functions which are only accessible through either menu diving or – there it is – an external CV signal.

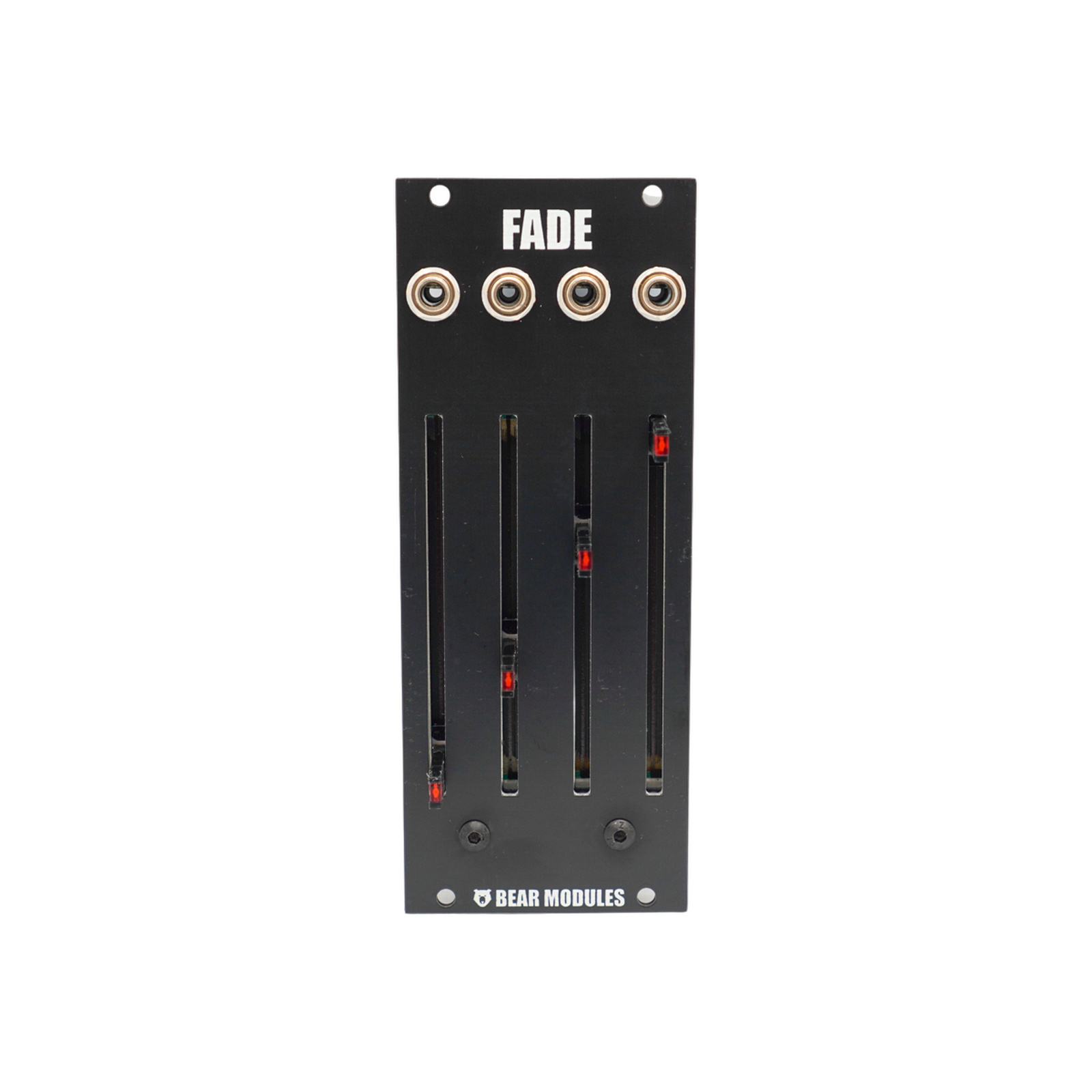

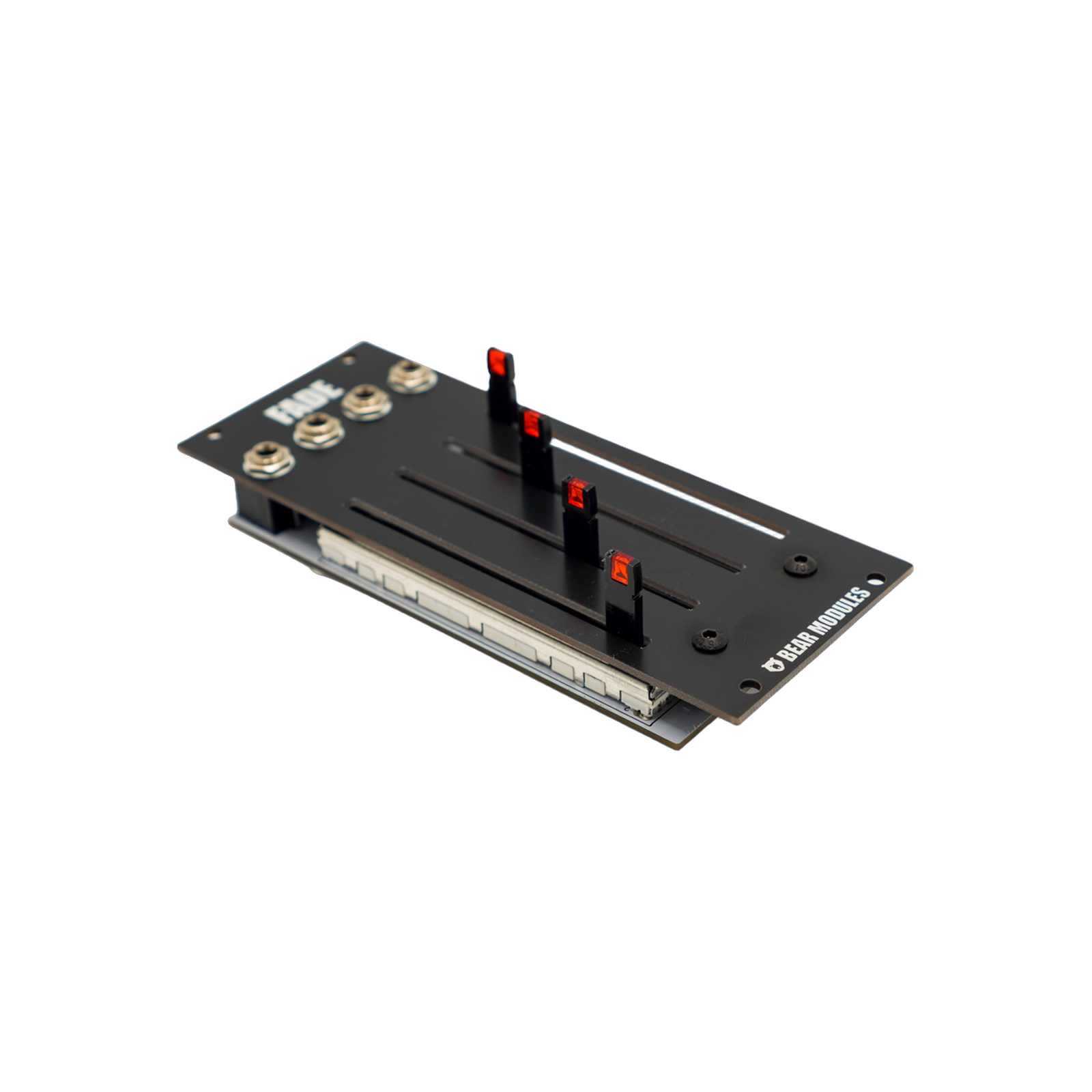

This module sends out a CV signal by means of sliding one of the faders. There are 4x high quality 60mm faders with color indicators in 10hp.

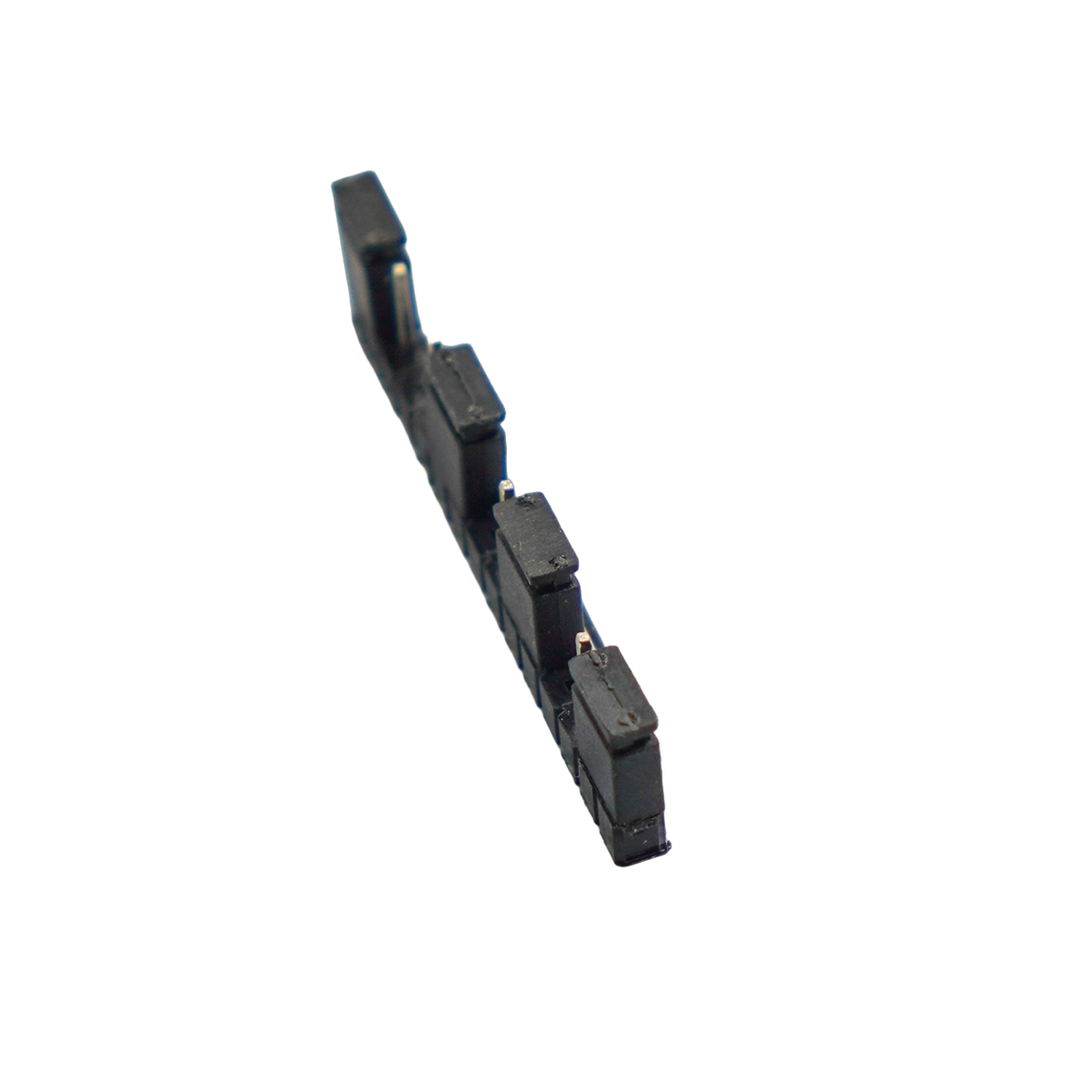

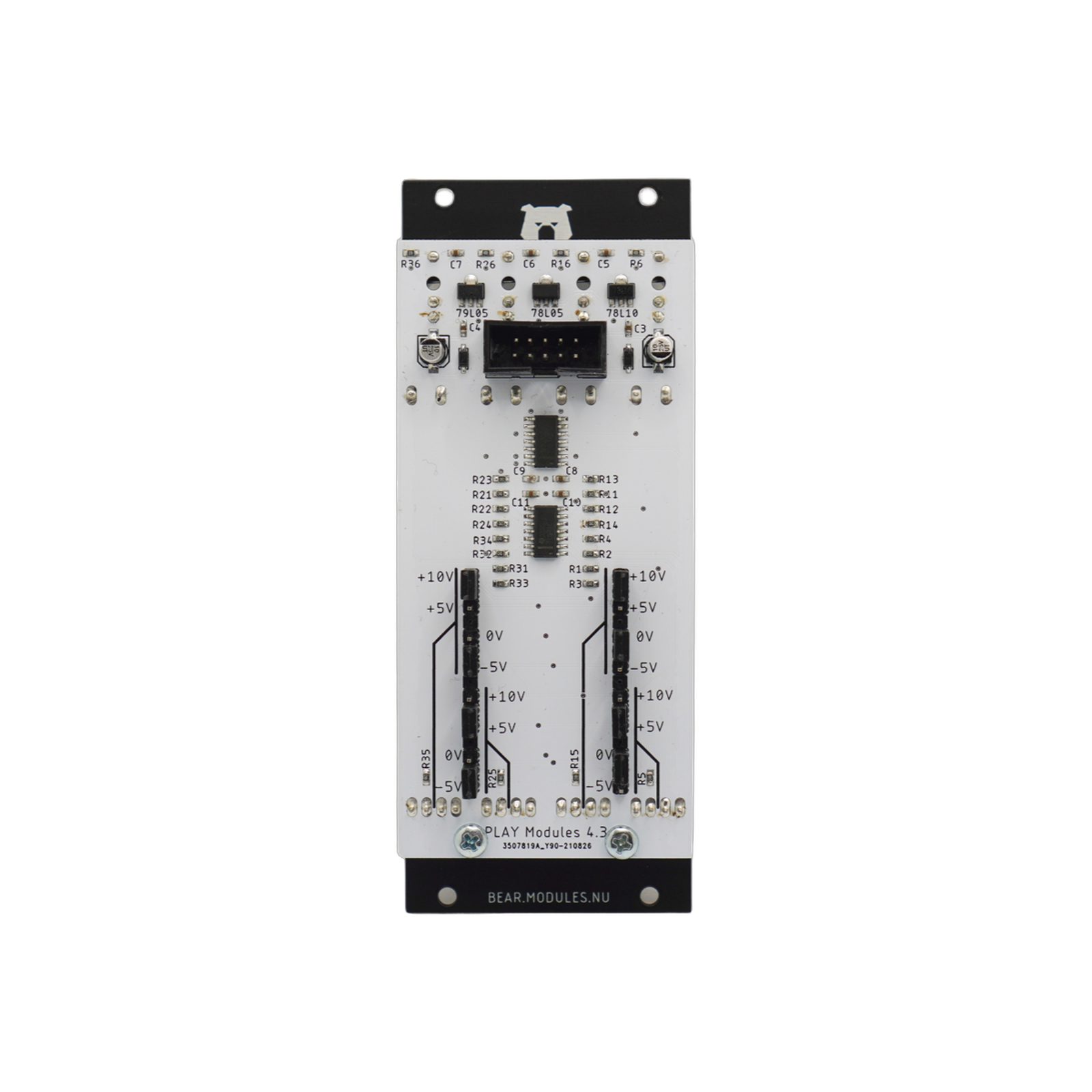

The range of the CV out is adjustable by jumper settings on the back (0V, -5V, +5V and +10V are available). The settings of these jumpers are explained in the drawing.
The black lines on the backside clearly indicate which jumpers belong to which fader. Remember that this is the backside of the module so the order of the faders is reversed.
This module is made in collaboration with Studio am Rhein.
* Power consumption 12v 48mA; -12v 18mA; 5v 0mA
