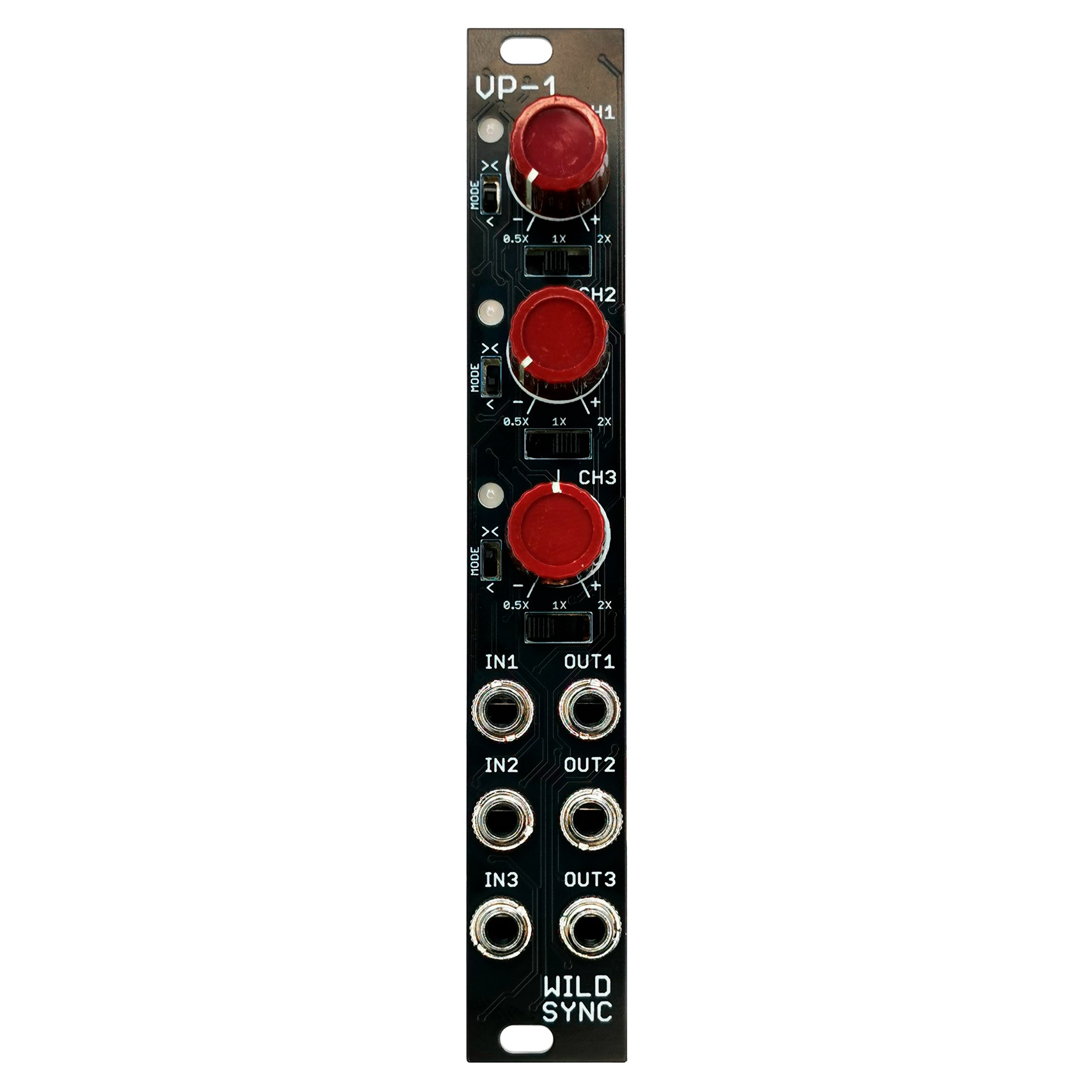

VP-1 Signal Processing by Wildsync
The Wildsync VP-1 is a versatile signal processing module for modular synthesizer systems. It offers three independent channels for attenuating, inverting, amplifying, and mixing signals. Each channel can handle both external signals and internal reference voltages, making it a powerful tool for modulation and control in any system. The module features bipolar LEDs to visualize the polarity and level of the output signal on each channel.

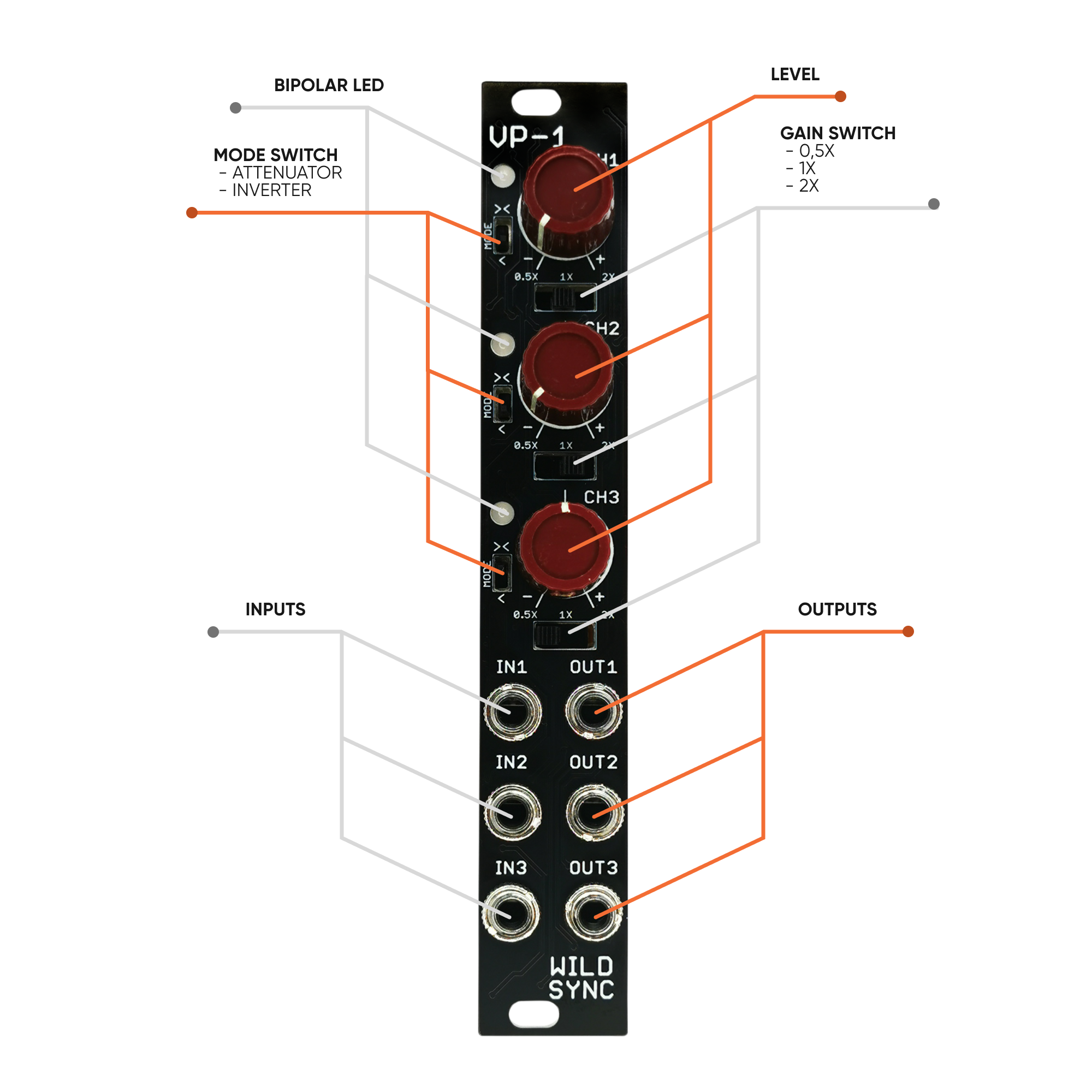

Key Features:
- Three independent channels for signal level control.
- Mode selection: attenuator (>) or attenuverter (><).
- Gain switch with three levels: 0.5X, 1X, and 2X.
- Internal reference voltage (2.5V, 5V, or 10V) when no input is connected.
- Bipolar LEDs for visualizing polarity and output signal level.
- Signal mixing when outputs are not in use.
- Each channel can be used as an Offset Voltage source.
The Wildsync VP-1 is the perfect solution for flexible control and mixing of modulation and audio signals in your modular system!
Depth: 25mm
Power: 38mA +12v; 33mA -12v
+ 15cm power cable included
Size: 4HP
