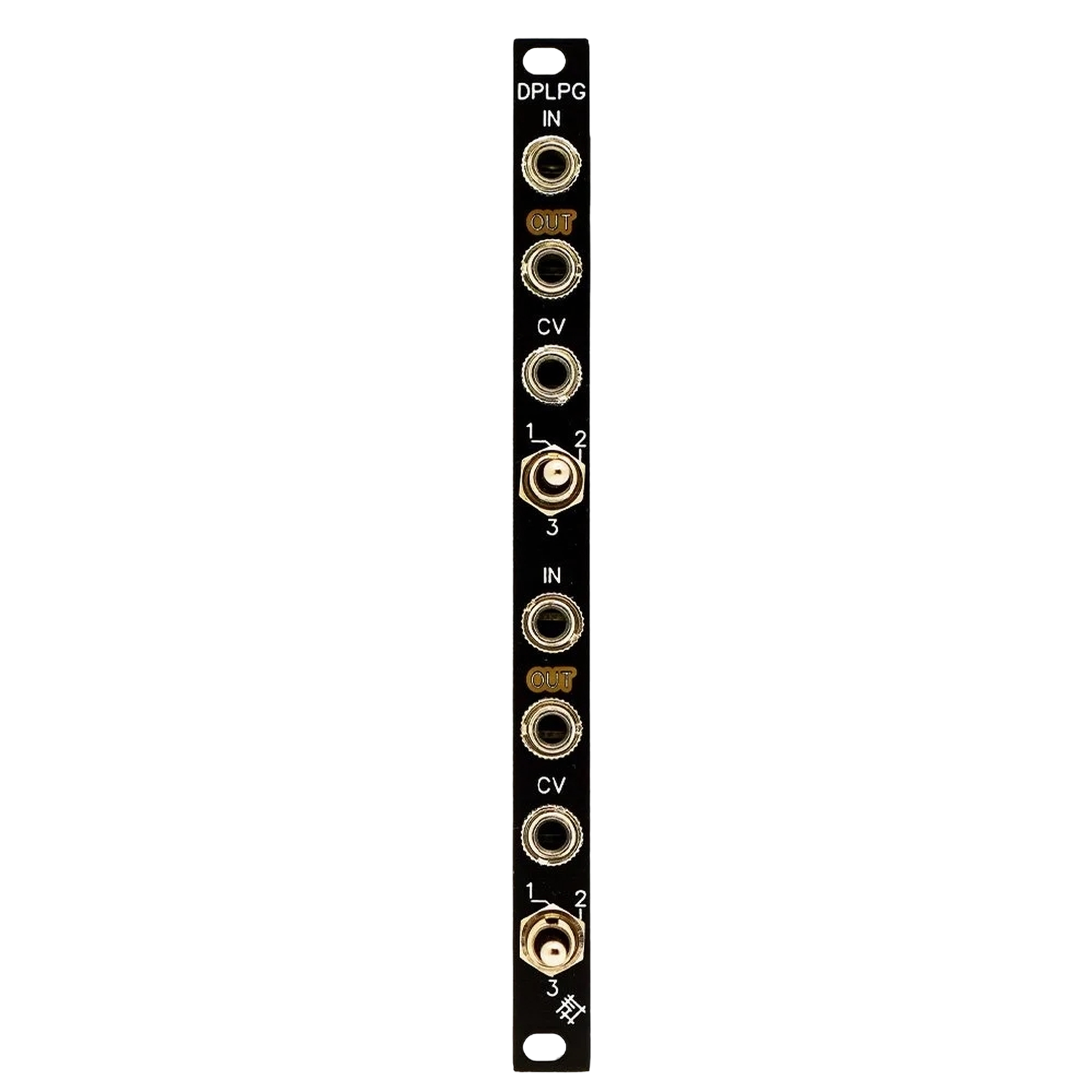

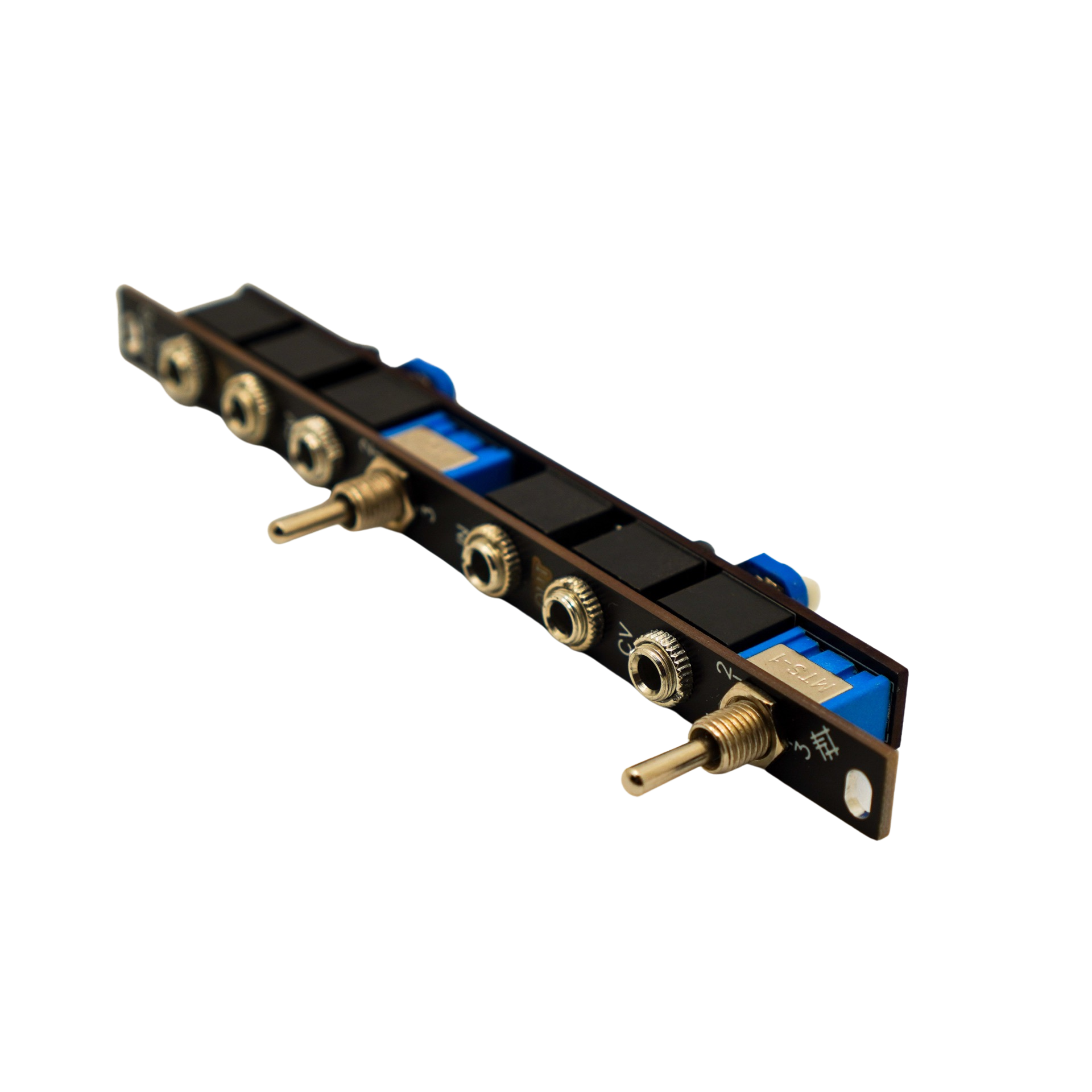

DPLPG by Knob Technology - Three-mode Dual Passive Low Pass Gate
DPLPG is a passive device that does not require power, resistor optocoupler based, or alternative name Vactrol. This device, without supplying voltage to the control input, almost does not pass the signal, when the control voltage is applied, it changes the amplitude and opens like a VCA amplifier, with a characteristic curve corresponding to the resistor optocoupler, which has a small signal release (LPG envelope), and the memory effect of a resistor optocoupler.
Technical specifications.
Normally closed gate / VCANoise transmission is dark -75db (+ - 10%) with an input signal Sine 1kHz + -5Vp-p in the mode withoutcutting the high frequencies.
Since this LPG is passive, the minimum voltage for opening is about 1.8V-2V.
The maximum CV source current required for maximum opening is 3mA, operating is less than 1mA.
Our LPG use matched pairs of opto-resistors and LEDs to provide excellent speed performance. The maximum frequency of distinguishable modulation of one signal by another signal is 10 kHz.
IMPORTANT
This is the updated version with added normalization from 1st to the 2nd channel.
Size: 2hp
