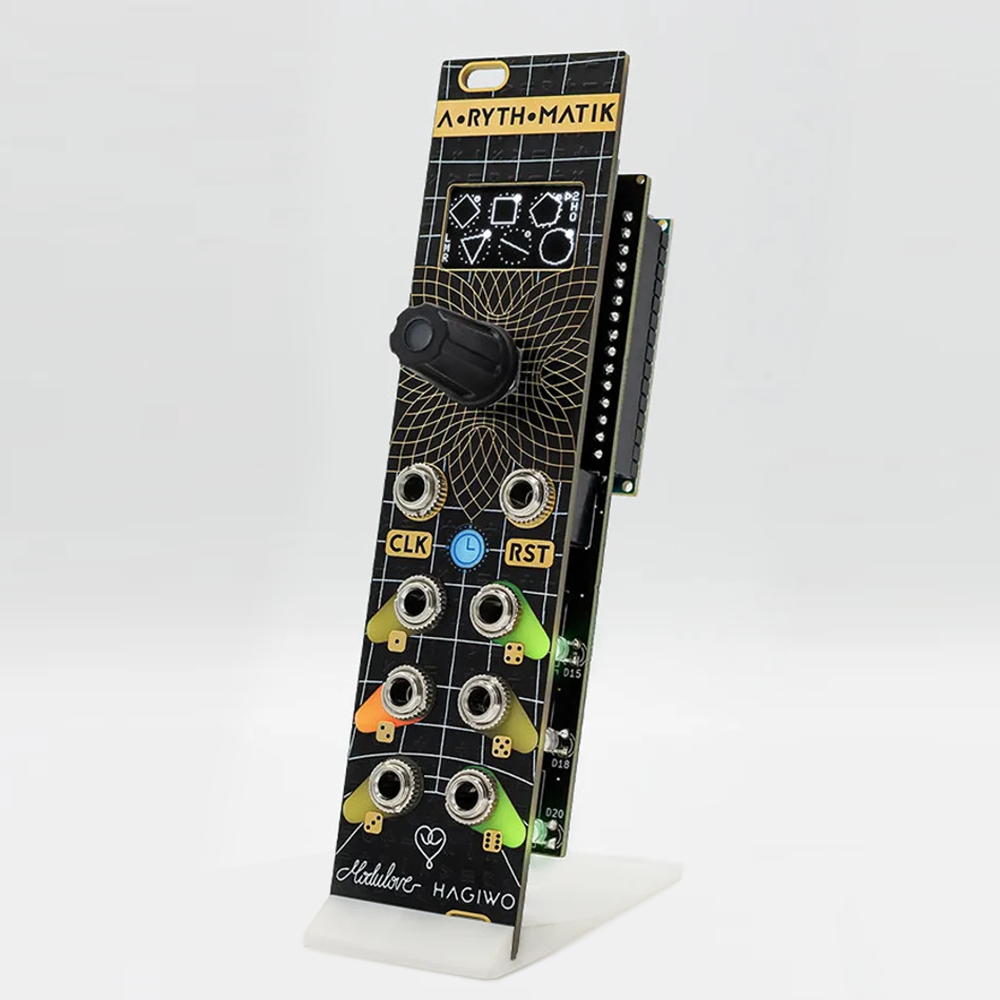

A-RYTH-MATIK by Modulove - 6 Channel Sequencer / Euclidean Rhythm Generator
The A-RYTH-MATIK is a powerful 6-channel Eurorack gate/trigger sequencer and Euclidean rhythm generator,
transforming rhythmic composition into an intuitive, dynamic experience.
Engineered to fit within a compact 6HP format, it module packs creative potential into a small footprint.
At its core, A-RYTH-MATIK offers six independently configurable channels, each with an LED indicator providing visual feedback.
The OLED display for visualization and rotary encoder with a push-button for intuitive navigation.
Beyond standard Euclidean sequencing, A-RYTH-MATIK distinguishes itself through innovative firmware options.
The Euclidean Rhythm Generator allows musicians to craft intricate rhythmic patterns, including randomization/probability modes that introduce controlled chaos.

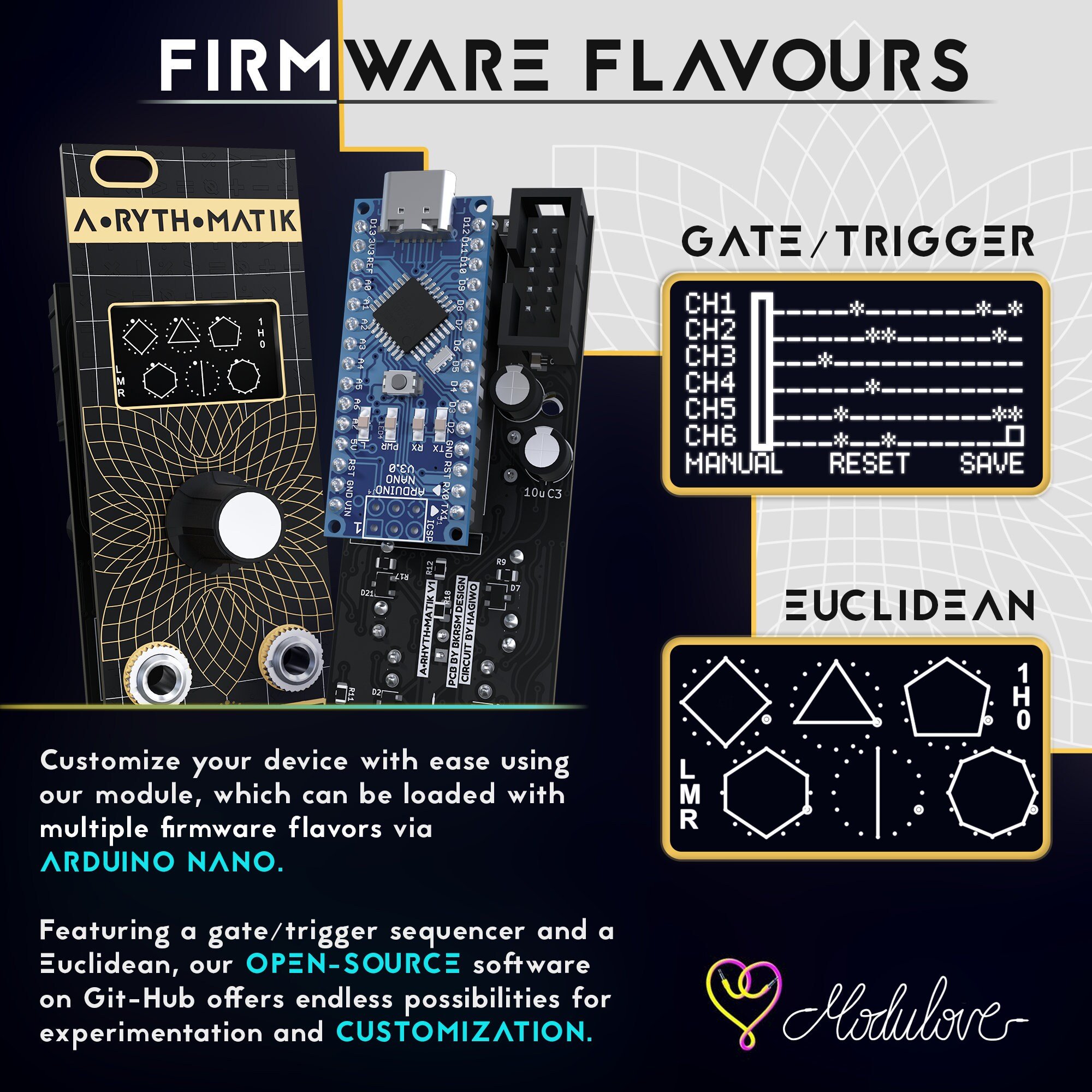

Alternative firmware transforming the module's capabilities include:
Bit Garden: A deterministic pseudo-random gate processor
Euclidean: Advanced Euclidean rhythm generation
Time Bandit: Fixed binary clock divider and sub-oscillator
Uncertainty: Configurable stochastic gate processor and gate sequencer
Robust design, with all inputs protected against overvoltage and negative currents.
Draws approximately 65mA on the 12V rail.

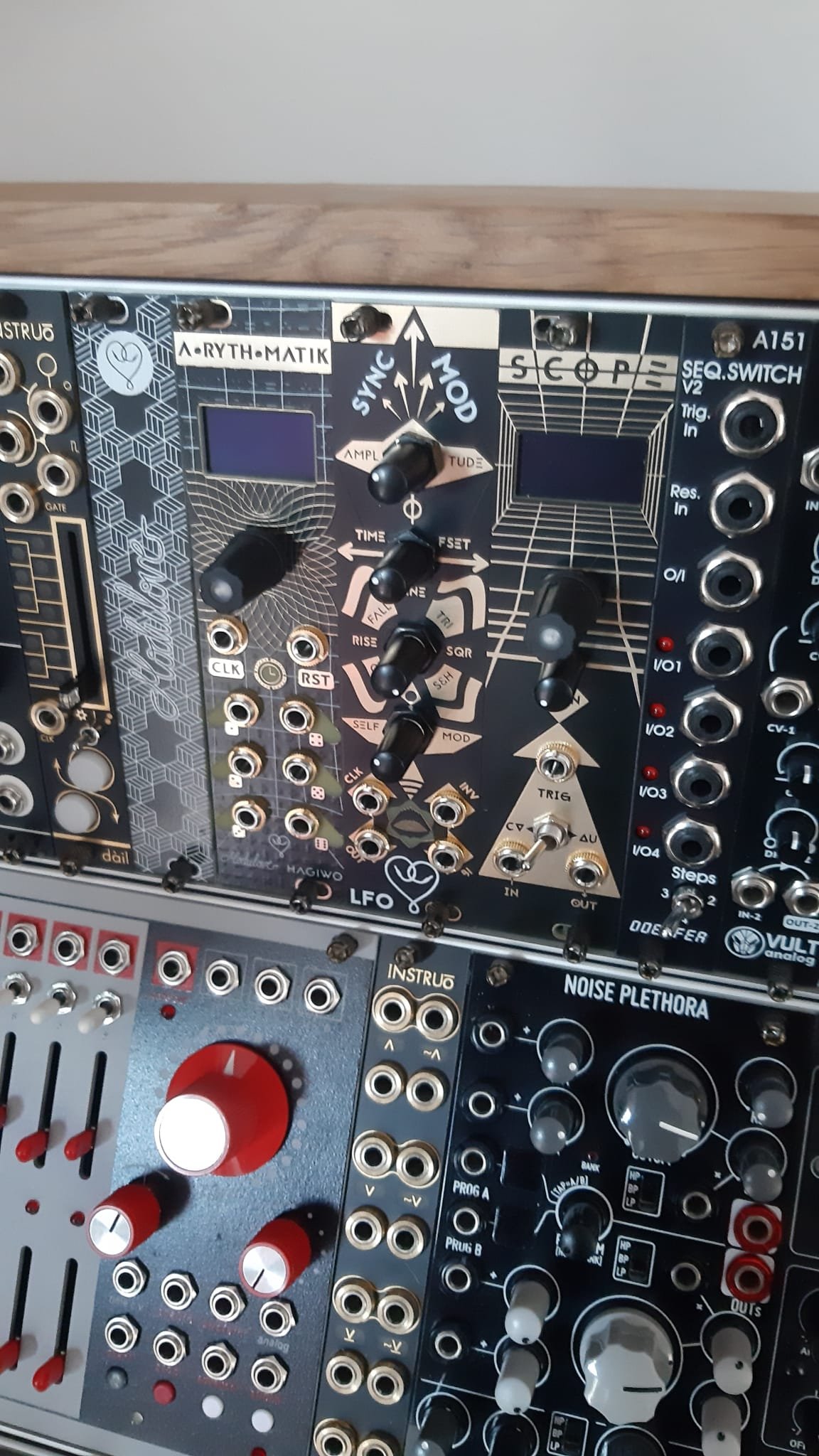

The design is optimized for use in space-constrained skiff cases.
The module has become a community-driven platform reminiscent of legendary open-source projects like Ornament & Crime and EuroPi.
It's become a canvas for musical innovation—inviting musicians, hackers, and sound designers to explore, modify, and reimagine rhythmic possibilities.
Features and Functionality

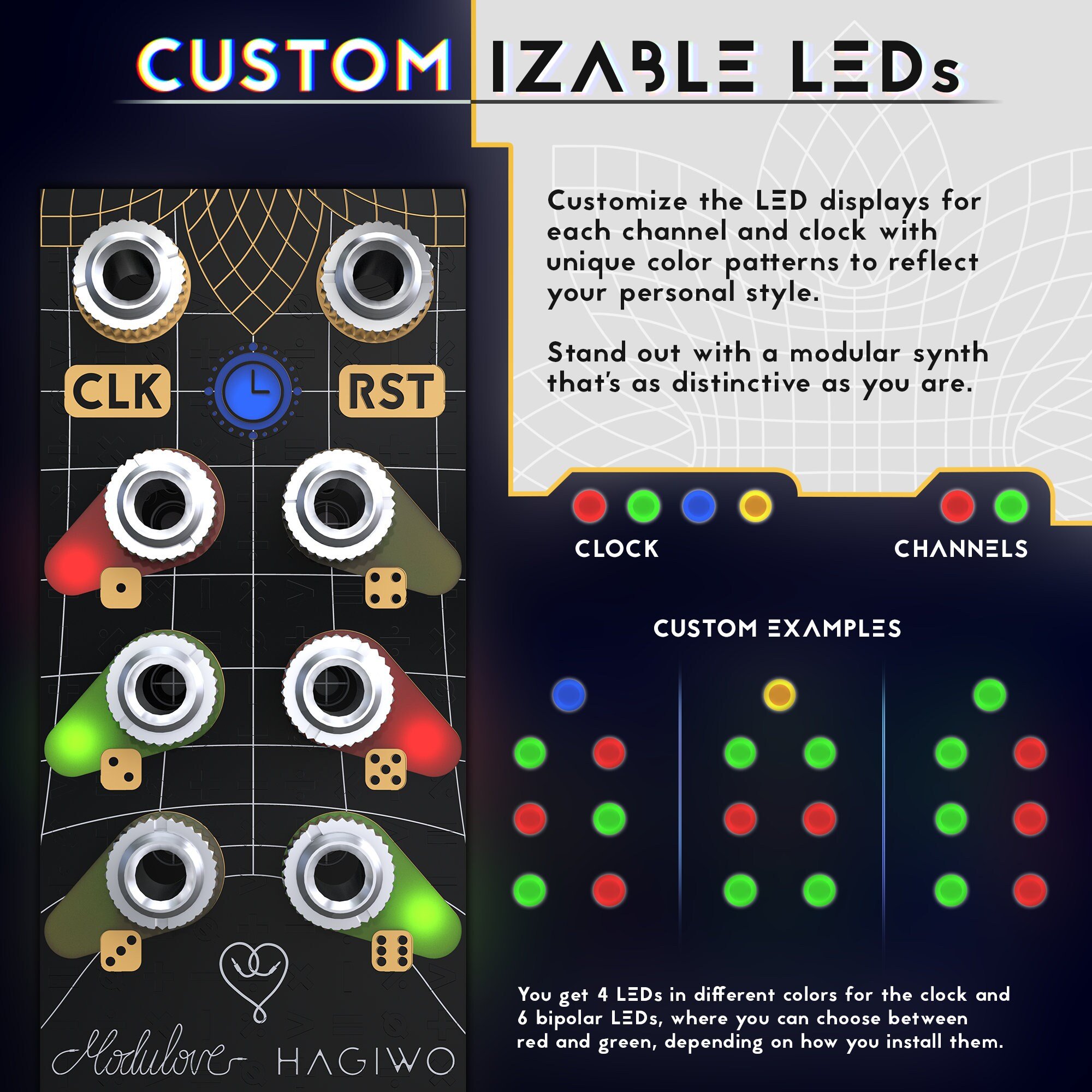

6 Channels: Each with LED indicator to provide clear visual feedback.
0.96” OLED Display: Compact 128x64 pixel display for clear visualization of rhythms and parameters.
Rotary Encoder: With integrated push button for intuitive control.
Inputs:
CLOCK IN: External clock input for syncing with your modular system.
RESET: reset input.
Robust Design: All jacks are protected against overvoltage and negative currents.
Power Efficient: Consumes approximately 65mA on the 12V rail.
Compact and Skiff-Friendly: Eurorack standard 3U, 6HP module that fits snugly in any setup.
Specifications:
Size: 6HP, 3U Eurorack
Power Requirements: 65mA (12V)
Display: 128x64 pixel 0.96” OLED screen
Controls: Rotary encoder with push button
More Info: https://modulove.io/arythmatik/
Size: 6 Hp
