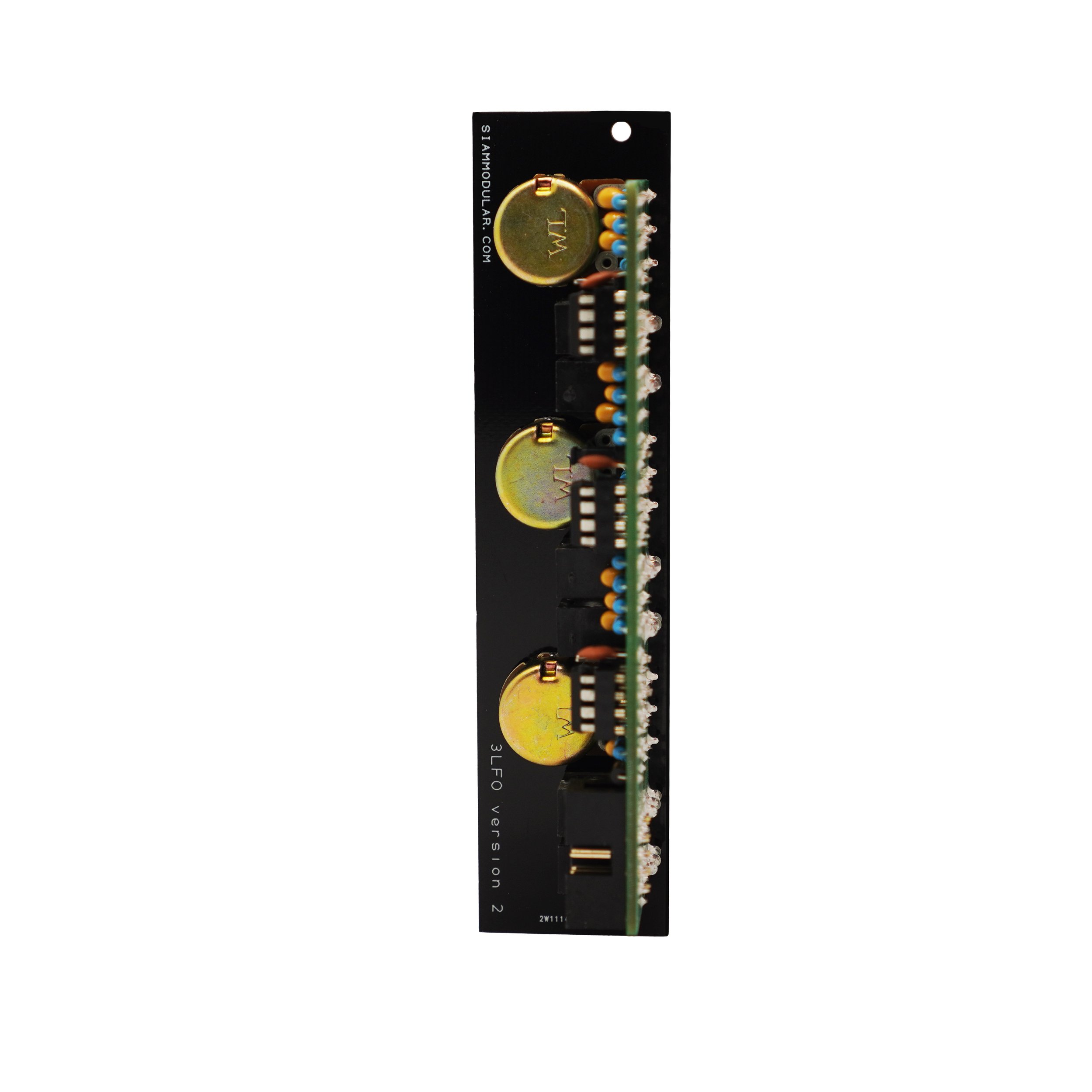

3LFO by Takaab
3 variable LFOs of varying frequency ranges in one handy 6HP eurorack module. LFO 1 is the fastest with LFOs 2 and 3 being slower by a factor of 10 and 100 respectively. Each oscillator outputs both square(ish) and triangle waves.
Approximate frequency ranges:
LFO 1: 4 ms (250hz) - 0.76 seconds
LFO 2: 40ms (25hz) - 7.6 seconds
LFO 3: 0.4 seconds (2.5hz) - 76 seconds
Module depth: 37mm.
2 outputs per LFO (square* wave and triangle wave).
Runs off +/-12v standard eurorack power supply.
Size: 6hp
