Welcome to the world of Paratek, where the aesthetics of Soviet cyberpunk come to life! Drawing inspiration from retrofuturism and postatomic romance, Paratek creates distinctive Eurorack modules that embody this unique fusion of influences.
Immersed in warm tube light and evocative mood, each Paratek module captures the essence of this aesthetic while also serving practical functions. These modules excel at solving everyday tasks while adding a touch of nostalgic charm.
With thoughtful consideration for power consumption, Paratek modules allow you to effortlessly combine multiple devices within your system without overwhelming your power supply. This flexibility enables you to curate a modular setup that suits your individual needs and style.
The expressive potential of Paratek modules ensures that you leave a lasting impression on your audience during performance.
Small mixer unit with 4 stereo pairs.
Left inputs normalised to the right inputs when nothing is inserted.
Size: 4hp
This product has more than one color option, please ask us for the availability.
• 8 independent mono channels for audio signal in tiny skiff friendly 12hp unit, 38mm deep.
• Individual volume and pan functions per channel.
• Stereo output channel sum with led indication of output signal level, SNR 69Db.
• Instant mute button for master output with led backlight.
Pride color scheme 🏳️🌈
Power consumpltion when mute button pressed can rise up to 140mA
passive mult 3 + 1 attenuated x 2 (with normalization)
Size: 12hp 1U
• 10-segment VU-meter with sensitivity adjustment and thru output.
• Two visual modes: full scale or floating point.
Size: 3hp
"ДИУ-2" (DIU-2) is a stereo version of "ДИУ-1" (DIU-1), it combines two completely independent meters.
• 10-segment VU-meter with sensitivity adjustment and thru output.
• Two visual modes: full scale or floating point.
Size: 4hp
This product has more than one color option, please ask us for the availability.
• Vu-meter with sensitivity adjustment, based on vintage tube "6e2"
• Built-in passive mult + one attenuated input/output.
Power consumption: +12 - 360 мА (with backlight 400 mA)
Dear customers! Please note that the module has high internal voltage! Do not touch the PCB with unprotected hands when power is on, it can cause a current shock and harm to your health! Please be carefull!
* "ЛИУ" units may slightly lower the source volume.
** Please note - any type of tubes may make a slight hum or noise, depending on the model of your power supply, this is normal, because it's a tube! :)
Size: 10hp
passive mult 3 + 3 + 4 with normalization
Size: 2hp
This product has more than one color option, please ask us for the availability.
"РЗРВ" - vactrol based unit, for interrupt or pass signals.Four independent generators perform two tasks depending on the operating conditions.
1 - When an external signal connected, the device breaks and passes it according to a unique random algorithm.
2 - In the absence of an incoming signal, the device transmits +5v to use as the gate, triggers, etc.
Each channel has a smooth setting from rare skips (CCW) to infrequent interrupts (CW).
Size: 4hp
This product has more than one color option, please ask us for the availability.
"Пуск-6" is a 6 channel muter / gater based on handmaded vactrols with fast response.
The product works in two modes: instant and Latch, in any combination of channel-by-channel.
If there is no incoming signal, the input is normalized to 5V and the device can work as a gate trigger for external sources,
such as envelopes, drum modules, and so on.
As an easter egg, unit has two random algorithms from the P3PB. New varieties may be added in the future with new firmwares.
Size: 8hp
This product has more than one color option, please ask us for the availability.
"Пуск-3" (Pusk-3/Start-3) is a 3 channel muter / gater based on handmade vactrols with fast response.
The product works in two modes: instant and latch, in any combination of channel-by-channel.
If there is no incoming signal, the input is normalized to 5V and the device can work as a gate trigger for external sources such as envelopes, drum modules, and so on.
As an easter egg, unit has two random algorithms from the P3PB. New varieties may be added in the future with new firmwares.
Size: 4hp
This product has more than one color option, please ask us for the availability.
• Adjustable number of channels from 1 to 6 + tremolo mode
• Two-way operation, high switching speed limit
• 6 algorithms for channels changing via trigger/gate, including random
• Manual and CV* control also available
• Unit save the last settings when powering off
• And of course, the lovely tube indication of the active channel :)
*There may be rare minor layering of adjacent channels, this is a technical drawback of the Arduino ADC, this can occur at very slow and some borderline voltage values.
Size: 6hp
• eurorack format 2-digit counter of incoming gate messages 5-12V.
• Based on Soviet Russian nixie tubes Ин-17.
• Optional shimmering backlight. 3 jacks passive multiple.
• 8 modes: stopwatch, 6 counters from 4 to 99 gates long and the output of random numbers.
• Save last mode on power off.
Size: 6hp

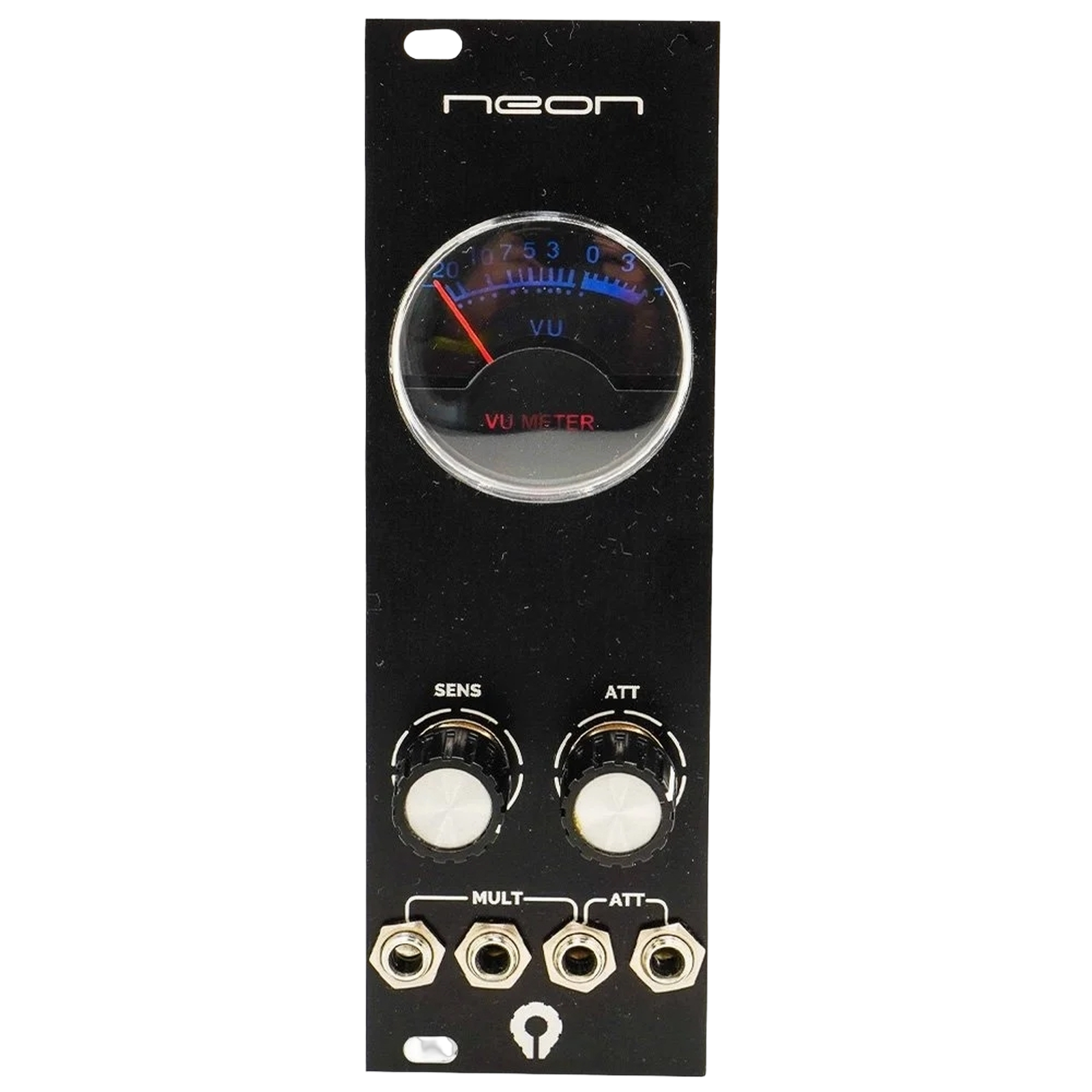

• VU-meter with sensitivity adjustment with backlight.
• Built-in passive mult + one attenuated input/output.
Size: 8hp
This product has more than one color option, please ask us for the availability.
"Пуск-3" is a 3 channel muter / gater based on handmaded vactrols with fast response.
The product works in two modes: instant and Latch, in any combination of channel-by-channel.
If there is no incoming signal, the input is normalized to 5V and the device can work as a gate trigger for external sources, such as envelopes, drum modules, and so on.
As an easter egg, unit has two random algorithms from the P3PB. New varieties may be added in the future with new firmwares.
• 4 square generators with very wide range
• Manual and CV control of the pitch and activity of each generator
• 8 separate outputs with different frequency
• Dual built-in "or" logic with the ability to use with external sources
• The "singularity" function turns the module into a psychic attack weapon on dolphins
• Ability to generate from high-frequency mixed noise to long non-linear sequences
• Great source for percussion sounds
Size: 8hp
Mixer unit with 8 stereo pairs (16 channel) with paired attenuators.
Left inputs normalised to right input when nothing inserted.
Size: 8hp

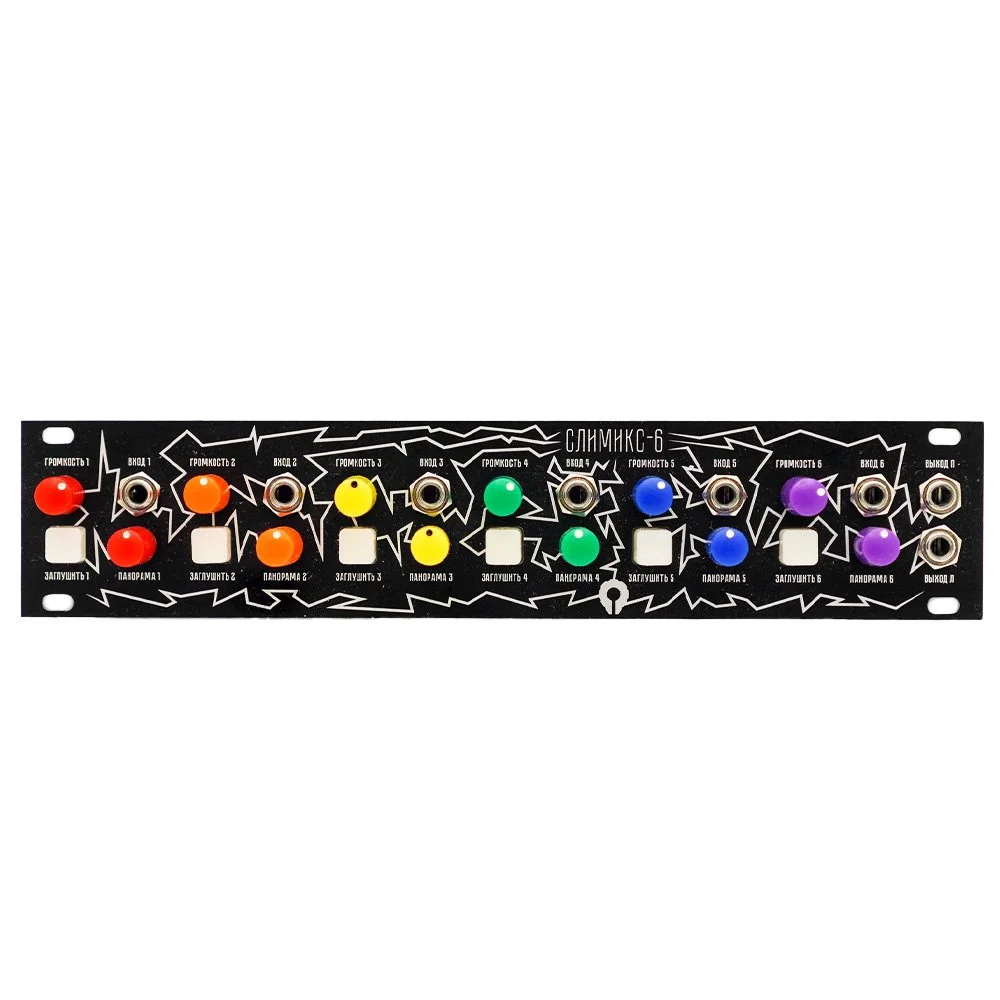

• 6 independent mono channels for audio signal in tiny skiff friendly 38hp unit , 38mm deep.
• Individual volume, pan and mute functions per channel.
• Stereo output channel sum ( SNR 69Db )
In the rare Pride version 🏳️🌈
Size: 38hp 1U
This product has more than one color option, please ask us for the availability.
• The visual analysis of the incoming signal with a three independent renderers,
with the possibility of duplicating the 2nd channel on all displays.
• Nine different visualisation algorithms.
• Wide dynamic range of input signals from audio to CV.
• Thru output.
Size: 6hp
This product has more than one color option, please ask us for the availability.
Eurorack format 3-digit counter of incoming gate messages 5-12V.
• Based on vintage Soviet Russian nixie tubes Ин-12.
• Optional shimmering backlight. 4 jacks passive multiple.
• 8 modes: stopwatch, 6 counters from 4 to 999 gates long and the output of random numbers.
• Save last mode on power off.
• You can choose the color of the backlight, with or without shimmering
• The front panel can be black or aluminum.
Consumption: +12 - 240 mA (330 mA with backlight)
Size: 14hp
• VU-meter with sensitivity adjustment, based on vintage Soviet indicator M68
• Various backlight. Built-in passive mult + one attenuated input/output.
• The front panel can be black or aluminum.
Size: 9hp
• VU-meter with sensitivity adjustment, based on vintage Soviet indicator M68
• Various backlight. Built-in passive mult + one attenuated input/output..
Size: 4 HP
