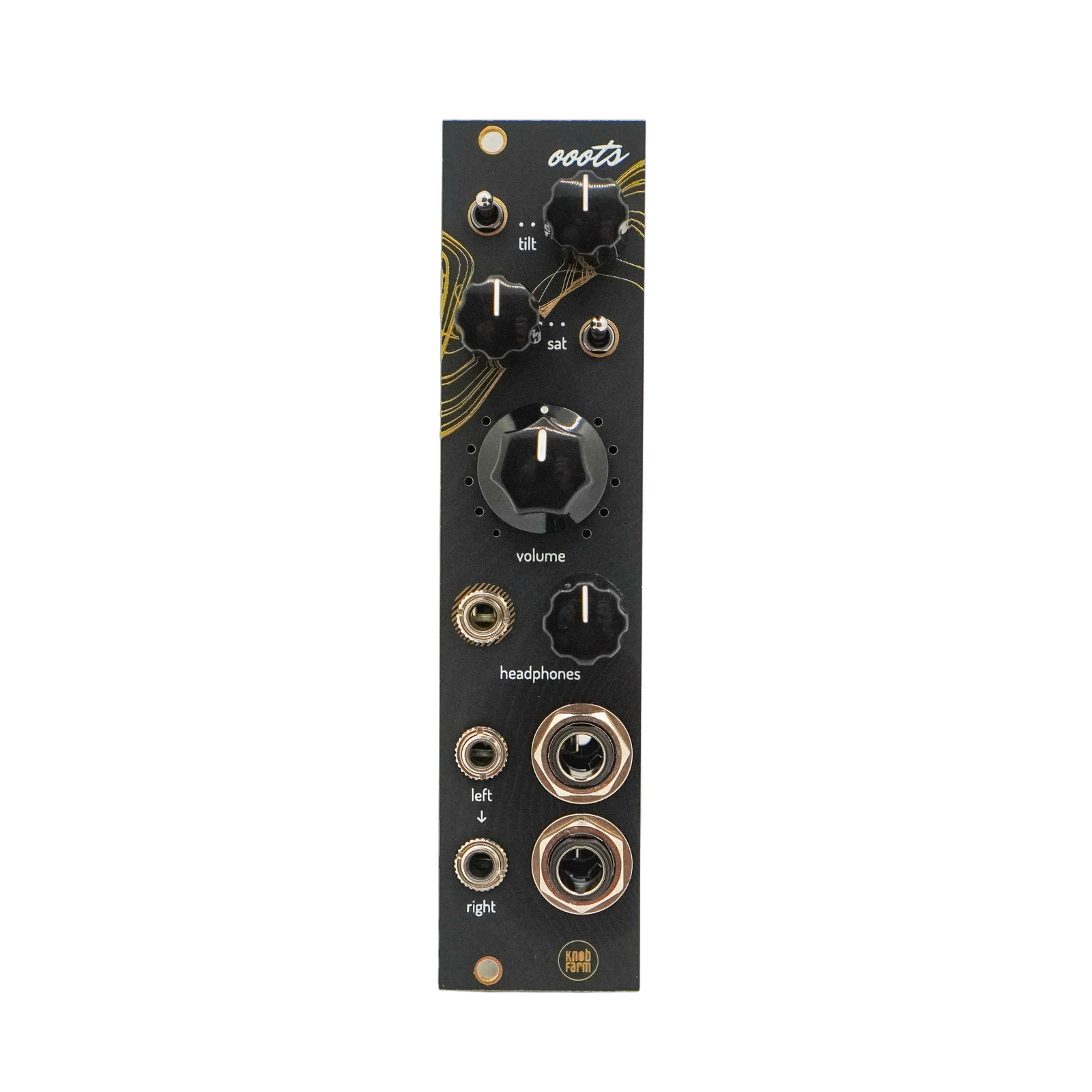

High quality creative master output with Tilt EQ and M/S Saturation on board.

Ooots provides a quality master output section with balanced outputs. With the Tilt EQ section you can shape the tonal balance of your output signal. Switching between the two types of Saturation circuits, you can gradually enrich the sound with harmonics or add coloration to your mix. Internal Mid/Side processing will keep a depth and accuracy of stereo image when use saturation. Dual 5-dot LED VU meter (calibrated to +4 dBu) helps to monitor the signal and indicate signal peaks. Built in headphone amplifier with independent volume control can drive almost any pair of headphones. Thanks to its compact design, quality analog circuit, balanced outputs and ultra low noise – Ooots can fit any live or studio setup.

* convert signal from modular level to line level + 4dBu scale

* internal Mid/Side processing for Tilt EQ and Saturation circuits to keep a depth of stereo image

* Tilt EQ section to shape tonal balance with bypass switch

* 2 types of Saturation circuits to enrich sound with harmonics, add coloration and glue your mix

* saturation can be smoothly added from zero to audible distortion

* dual 5-dot LED VU meter to monitor the signal and indicate signal peaks

* independent headphones amplifier with separate volume control

* 1/4" TRS balanced outputs, 1/8" stereo headphone out

* complete analog circuit, ultra low noise

* reversed power polarity protection

* compact design

* 2 mm FR4 matte black & gold front panel

Size: 6hp

Ferry is high quality two channels send/return module to outboard gear such as FX pedals or external processors

* manual control for dry/wet signal mix

* two modes for input channels: linked gain or crossfaded between input channels

* send includes two modes: stereo or mixed mono

* attenuation of send signal suitable for use with external effects

* two gain amplification modes for returned signal

* Ferry can be used as line level signal preamp

* channels input, main output LED indication

* send clipping LED indication

* AC-coupled circuitry

* transparent, clean sound, ultra low noise

* 3.5mm stereo jacks for send and return

* daisy chaining output to connect with Hyrlo or Ferry modules

* configurable settings to interrupt daisy chaining with inserted jacks

* symmetrical panel can be flipped backwards to change the panel design

* compact design, skiff friendly

* reversed power polarity protection

The module is bundled with the pair (2) of Y-split 3.5mm TRS to dual 1/4" TS cables 1m each long.

Size: 4hp

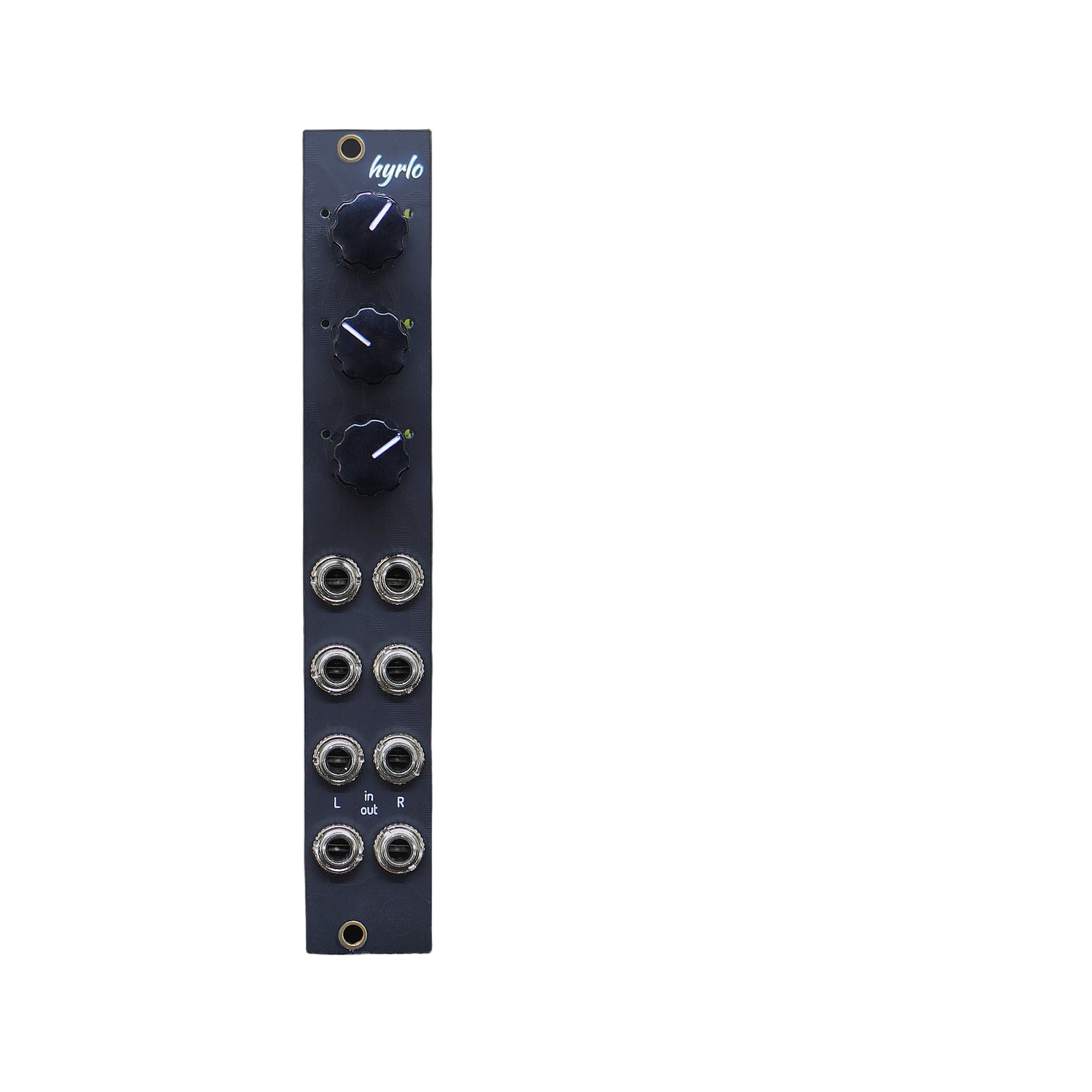

High quality 3x stereo up to 6x mono audio mixer with daisy chaining.

- L channel is normalled to R channel for mono sources

- multiple usage configurations:

• 3 stereo pairs

• 2 stereo + 1 mono

• 1 stereo + 2 mono

• 1 up to 6 mono sources

- potentiometers curves optimized for smooth and natural volume control

- channels signal LED indication

- AC-coupled circuitry

- multiple mixers can be daisy chained

- configurable settings to interrupt daisy chaining with inserted jacks

- transparent, clean sound, ultra low noise

- symmetrical panel can be flipped backwards to change the panel design

- reversed power polarity protection

- compact design, skiff friendly

Size: 4 HP
