Flora Synths is a creation of the TriangleCoreRocks team. We wanted to additionally contribute to the market and the community and came up with this concept. We hope you’ll like not only our shop, but also our modules, we put a huge effort to make them happen!
Flora Synths Blank Panel in traditional black color.
Size: 4 HP
Flora Synths Blank Panel in yellow color.
Size: 4 HP
Botanical Name: Flora Quatrovertalius
Common Name: Attenuverter, Manual Voltage Source, Mixer
Description
Four lanes of instant CV control.
Attenuverters are found in almost every Eurorack setup—much like certain tiny lifeforms quietly producing a large share of the air we breathe. In the same way, the Quatrovertalius brings a vital presence to any system with four channels of taming, inverting, and offsetting. While it does not support chaining as its little sibling Vertalius does, this four-headed specimen still offers all the dependable traits of its single-headed cousin—just multiplied. Its symmetrical form and straightforward function make the Quatrovertalius a strong addition to any modular garden, ready to shape and refine control signals.
Growth Requirements
Power Supply: +12V, -12V (standard Eurorack power)
Space Requirements: 10HP width, skiff-friendly
Cultivation and Care
Feeding (Signal Input):
The Flora Quatrovertalius accepts a variety of signals through its INPUT jack (the top one), flourishing with both audio and CV signals.
You don’t have to feed Flora Quatrovertalius, without food it becomes a Voltage Generator and can provide you with the constant voltage controlled by the slider on any of the four channels. The toggle allows you to go to the negative voltage territory.
When nothing is patched onto the output of a single attenuverter block, its signal is automatically fed into the next one, allowing for more complex control over your signal.
By using the abovementioned mechanism you can use the Quatrovertalius as a mixer for both audio and CV signals.
Botanical Name: Flora Vertalius
Common Name: Attenuverter, Manual Voltage Source, Mixer (when being chained)
Description
The Flora Vertalius is a common and slim specimen in the Eurorack garden, known for its unique ability to tame, invert, and offset signals. This hardy perennial thrives in a modular ecosystem, providing both aesthetic beauty and functional value. Especially it enjoys being with its family, other Flora Vertalius species.
Growth Requirements
Power Supply: +12V, -12V (standard Eurorack power)
Space Requirements: 2HP width, skiff-friendly
Cultivation and Care
Feeding (Signal Input):
The Flora Vertalius accepts a variety of signals through its INPUT jack (the top one), flourishing with both audio and CV signals.
You don’t have to feed Flora Vertalius, without food it becomes a Voltage Generator and can provide you with the constant voltage controlled by the slider. The toggle allows you to go to the negative voltage territory
Growth (Attenuation and Inversion):
The primary function of Flora Vertalius is controlled by the slider.
The switch shifts between the attenuation and inversion modes.
Chain Cultivation (Chaining Multiple Modules)
Interconnected Growth:
The Flora Vertalius can be linked with other modules of its family to create a continuous signal path.
Utilize the pins at the back of the module named OUT and IN to chain modules together using the provided cable.
OUT: Sends the processed signal to the next module.
IN: Receives the signal from the previous module.
This chaining allows for a seamless integration, ensuring that the signal is normalized across all connected Flora Vertalius, enriching your modular garden with expanded possibilities.
To “break” the chain, insert a jack cable to the OUT, this will stop the module from feeding the next in line.
The “parental” module’s signal is mixed with the child’s one. You can mix both audio and CV signals. This module is not a mixer per-se, but with your creativity it can function as one.
Keep in mind the polarity of the audio signal. The pins are marked, so you don’t mistake it

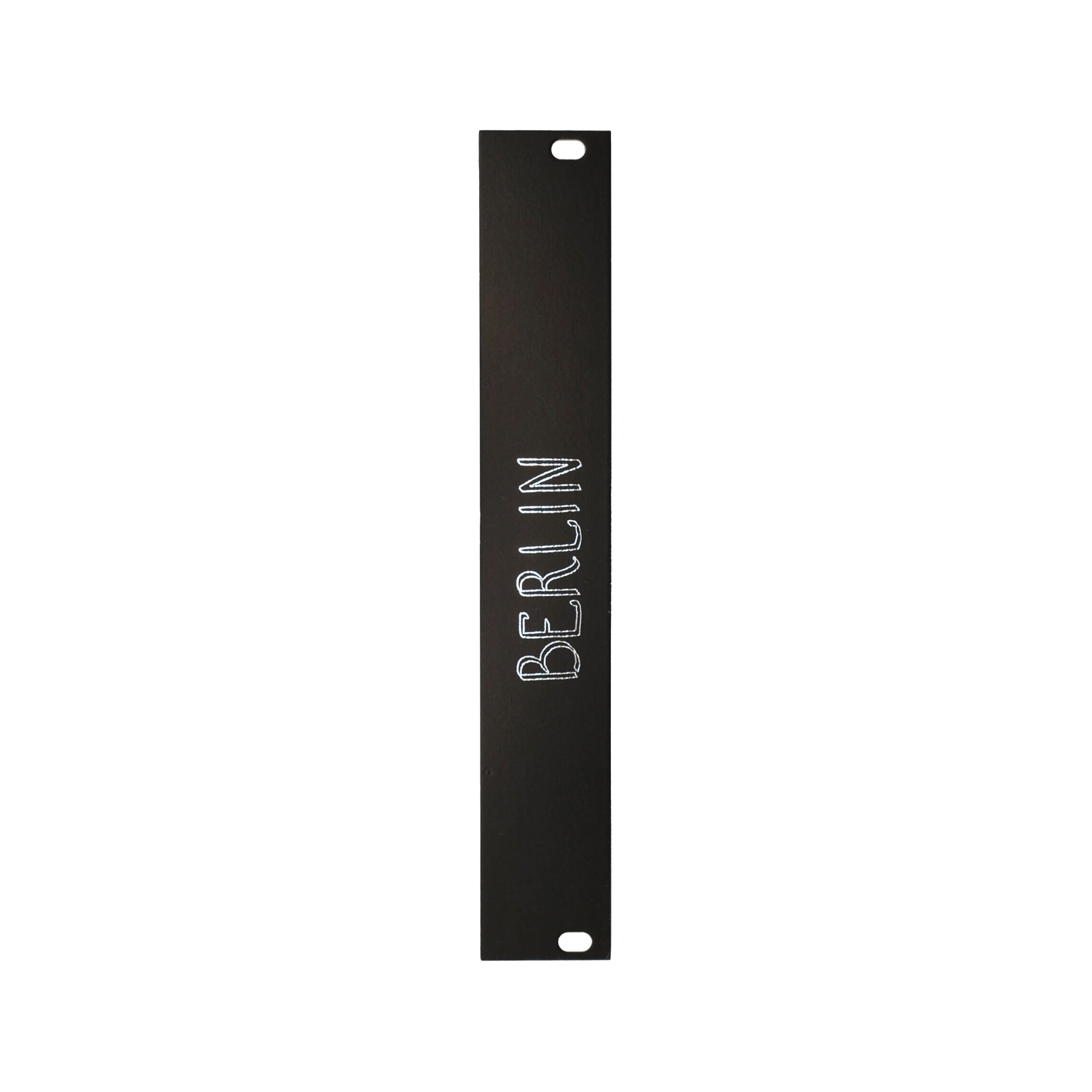

Berlin, du bist so wunderbar!
Size: 4 HP
